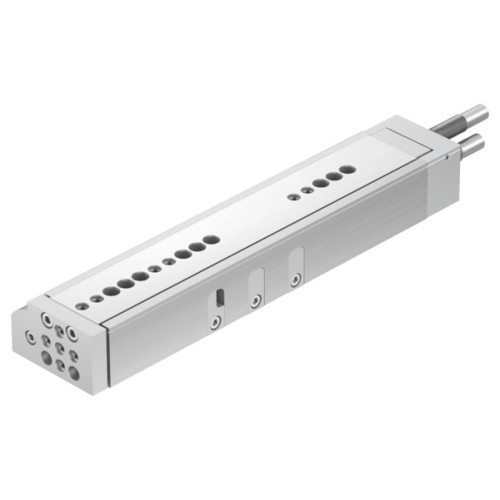

DGSL-12-150-Y3A Mini slide

Manufacturer's No: DGSL-12-150-Y3A     Manufacturer: Festo
DGSL-12-150-Y3A Mini slide

Availability On Request

£1,155.51
  • Mini slide DGSL-12-150-Y3A for position sensing
  • Stroke: 150 mm
  • Highly accurate and durable ball-cage guide
  • Very high repetition accuracy
  • Hydraulic shock absorbers on both sides
  • Adjustable end position range:
    • Front length: 87 mm
    • Rear length: 25.5 mm
  • Piston diameter: 16 mm
  • Operating mode of drive unit: Yoke
  • Cushioning: Progressive shock absorber at both ends
  • Position detection: Via proximity switch

Read more

  • Operating pressure:
    • Min: 0.1 MPa
    • Max: 0.8 MPa
  • Max. speed: 0.8 m/s
  • Repetition accuracy: ±0.01 mm
  • Mode of operation: Double-acting
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 0 - No corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Ambient temperature range: 0°C to 60°C
  • Impact energy in end positions: 2 Nm
  • Cushioning length: 10 mm
  • Max. force:
    • Fy: 1400 N
    • Fz: 1400 N
  • Max. moment:
    • Mx: 20 Nm
    • My: 15 Nm
    • Mz: 15 Nm
  • Theoretical force at 0.6 MPa (6 bar, 87 psi):
    • Return stroke: 104 N
    • Advance stroke: 121 N
  • Moving mass: 614 g
  • Product weight: 1535 g
  • Pneumatic connection: M5
  • Material:
    • Cover: Wrought aluminium alloy
    • Seals: HNBR
    • Housing: Wrought aluminium alloy
    • Piston rod: High-alloy stainless steel


Product

Manufacturer Material ID -
DGSL-12-150-Y3A
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
