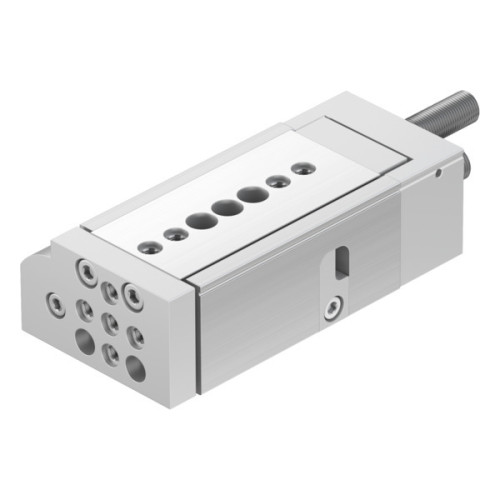

DGSL-12-20-P1A Mini slide

Manufacturer's No: DGSL-12-20-P1A     Manufacturer: Festo
DGSL-12-20-P1A Mini slide

Availability Back Order

£635.16
  • Mini slide DGSL-12-20-P1A designed for position sensing
  • Highly accurate and durable ball-cage guide with very high repetition accuracy
  • Stroke: 20 mm
  • Adjustable end position range/front length: 29 mm
  • Adjustable end position range/rear length: 25.5 mm
  • Piston diameter: 16 mm
  • Operating mode of drive unit: Yoke
  • Elastic cushioning rings/pads at both ends with fixed stop for cushioning
  • Guide: Ball bearing cage guide
  • Position detection via proximity switch

Read more

  • Operating pressure: 0.1 MPa to 8 bar
  • Max. speed: 0.8 m/s
  • Repetition accuracy: ±0.01 mm
  • Double-acting mode of operation
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 0 - No corrosion stress
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Ambient temperature: 0°C to 60°C
  • Impact energy in end positions: 0.06 Nm
  • Cushioning length: 3.7 mm
  • Max. force Fy: 1006 N
  • Max. force Fz: 1006 N
  • Max. moment Mx: 15 Nm
  • Max. moment My: 9 Nm
  • Max. moment Mz: 9 Nm
  • Moving mass: 279 g
  • Product weight: 700 g
  • Pneumatic connection: M5
  • RoHS-compliant materials used
  • Material cover: Wrought aluminium alloy
  • Material seals: HNBR
  • Material housing: Wrought aluminium alloy
  • Material piston rod: High-alloy stainless steel

Accessories

QSM-M5-4 PUSH-IN FITTING

Product Code - 153304
Price £2.53
Back Order

QSML-M5-4 PUSH-IN L-FITTING

Product Code - 153333
Price £3.66
Back Order


Product

Manufacturer Material ID -
DGSL-12-20-P1A
Net Weight -
0.76kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
