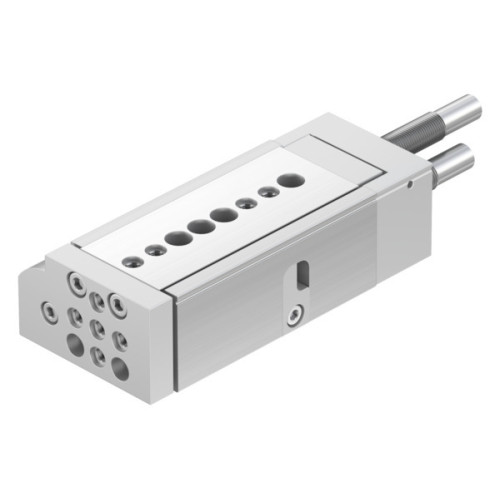

DGSL-12-30-Y3A Mini slide

Manufacturer's No: DGSL-12-30-Y3A     Manufacturer: Festo
DGSL-12-30-Y3A Mini slide

Availability On Request

£758.90
  • Mini slide DGSL-12-30-Y3A for precise position sensing
  • Stroke: 30 mm with adjustable end position range of 29 mm (front) and 25.5 mm (rear)
  • Piston diameter: 16 mm with durable ball-cage guide for high repetition accuracy
  • Hydraulic shock absorbers on both sides for progressive cushioning
  • Operating pressure: 0.1 MPa to 8 bar, suitable for compressed air
  • Max. speed: 0.8 m/s with ±0.01 mm repetition accuracy
  • Corrosion resistance class CRC: 0, suitable for cleanroom Class 7 environments
  • Impact energy in end positions: 2 Nm with a cushioning length of 10 mm
  • Max. force: 1075 N in both Y and Z directions
  • Max. moments: 15 Nm (Mx), 10 Nm (My), 10 Nm (Mz)

Read more

  • Lightweight design with a moving mass of 299 g and a total weight of 747 g
  • Material: RoHS-compliant wrought aluminum alloy cover and housing, HNBR seals, high-alloy stainless steel piston rod
  • Mounting: With through-hole and M5 pneumatic connection
  • Operating temperature range: 0°C to 60°C
  • Suitable for lubricated operation, LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Position detection via proximity switch, suitable for double-acting operation


Product

Manufacturer Material ID -
DGSL-12-30-Y3A
Net Weight -
0.82kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£758.90
