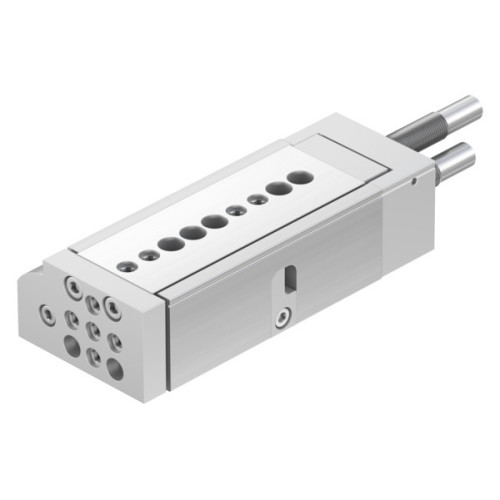

DGSL-12-40-Y3A Mini slide

Manufacturer's No: DGSL-12-40-Y3A     Manufacturer: Festo
DGSL-12-40-Y3A Mini slide

Availability On Request

£791.95
  • Mini slide DGSL-12-40-Y3A for precise position sensing
  • Stroke: 40 mm
  • Highly accurate ball-cage guide for durability
  • Hydraulic shock absorbers on both sides for smooth operation
  • Adjustable end position range: 29 mm (front), 25.5 mm (rear)
  • Piston diameter: 16 mm
  • Operating mode: Yoke
  • Progressive shock absorber cushioning at both ends
  • Position detection via proximity switch
  • Operating pressure: 0.1 MPa to 8 bar

Read more

  • Max. speed: 0.8 m/s
  • Repetition accuracy: ±0.01 mm
  • Double-acting operation
  • Operating medium: Compressed air (ISO 8573-1:2010 [7:4:4])
  • Corrosion resistance class: CRC 0
  • Cleanroom class: Class 7 (ISO 14644-1)
  • Ambient temperature range: 0°C to 60°C
  • Impact energy in end positions: 2 Nm
  • Cushioning length: 10 mm
  • Max. forces: Fy 1142 N, Fz 1142 N
  • Max. moments: Mx 18 Nm, My 11 Nm, Mz 11 Nm
  • Theoretical force at 0.6 MPa: 104 N (return stroke), 121 N (advance stroke)
  • Moving mass: 320 g
  • Product weight: 798 g
  • Pneumatic connection: M5
  • RoHS-compliant materials: Wrought aluminium alloy cover and housing, HNBR seals, high-alloy stainless steel piston rod


Product

Manufacturer Material ID -
DGSL-12-40-Y3A
Net Weight -
0.83kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
