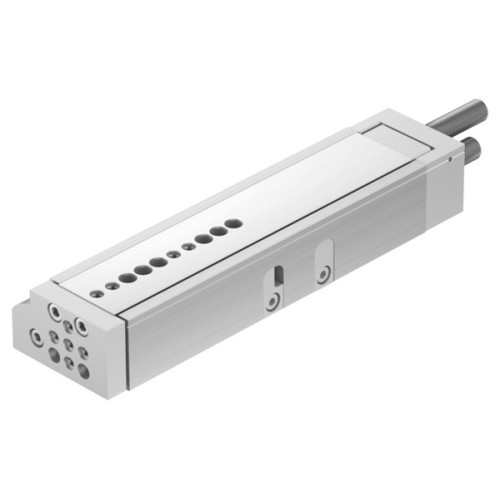

DGSL-16-100-P1A Mini slide

Manufacturer's No: DGSL-16-100-P1A     Manufacturer: Festo
DGSL-16-100-P1A Mini slide

Availability On Request

£932.62
  • Mini slide DGSL-16-100-P1A designed for position sensing
  • Highly accurate and durable ball-cage guide with very high repetition accuracy
  • Stroke length: 100 mm
  • Adjustable end position range: 72.5 mm (front), 39.5 mm (rear)
  • Piston diameter: 20 mm
  • Operating mode: Yoke
  • Cushioning: Elastic cushioning rings/pads at both ends with fixed stop
  • Guide: Ball bearing cage guide
  • Position detection: Via proximity switch
  • Operating pressure: 0.1 MPa to 8 bar

Read more

  • Max. speed: 0.8 m/s
  • Repetition accuracy: ±0.01 mm
  • Double-acting operation
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class: 0 - No corrosion stress
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Ambient temperature range: 0°C to 60°C
  • Impact energy in end positions: 0.12 Nm
  • Max. forces: Fy 2850 N, Fz 2850 N
  • Max. moments: Mx 50 Nm, My 43 Nm, Mz 43 Nm
  • Theoretical force at 0.6 MPa (6 bar, 87 psi): Return stroke 158 N, Advance stroke 188 N
  • Moving mass: 776 g
  • Product weight: 1792 g
  • Pneumatic connection: M5
  • Material: Cover and housing made of wrought aluminium alloy, seals made of HNBR, piston rod made of high-alloy stainless steel
  • RoHS-compliant materials
  • Type of mounting: With through-hole
  • Alternative connections as per product drawing
