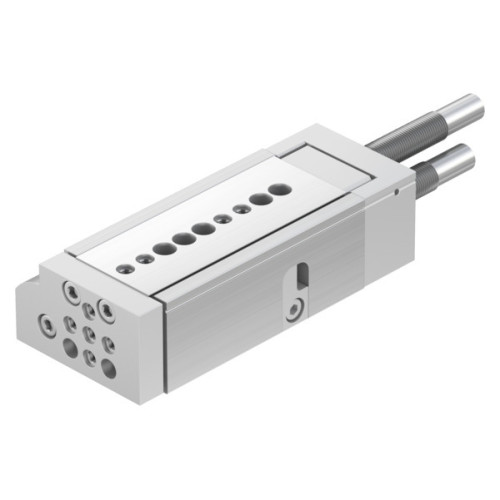

DGSL-16-30-Y3A Mini slide

Manufacturer's No: DGSL-16-30-Y3A     Manufacturer: Festo
DGSL-16-30-Y3A Mini slide

Availability On Request

£800.28
  • Mini slide DGSL-16-30-Y3A for position sensing
  • Stroke: 30 mm
  • Highly accurate and durable ball-cage guide
  • Hydraulic shock absorbers on both sides
  • Repetition accuracy: ±0.01 mm
  • Piston diameter: 20 mm
  • Operating pressure: 0.1 MPa to 8 MPa
  • Max. speed: 0.8 m/s
  • Cushioning: Progressive shock absorber at both ends
  • Mounting position: optional

Read more

  • Position detection: Via proximity switch
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 0 - No corrosion stress
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Ambient temperature: 0°C to 60°C
  • Impact energy in end positions: 4 Nm
  • Max. force: Fy and Fz - 2274 N; Mx, My, and Mz - 35 Nm, 22 Nm, 22 Nm respectively
  • Moving mass: 459 g
  • Product weight: 1076 g
  • Material cover: Wrought aluminium alloy
  • Material seals: HNBR
  • Material housing: Wrought aluminium alloy
  • Material piston rod: High-alloy stainless steel
  • RoHS-compliant materials
  • Type of mounting: With through-hole
  • Pneumatic connection: M5


Product

Manufacturer Material ID -
DGSL-16-30-Y3A
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
