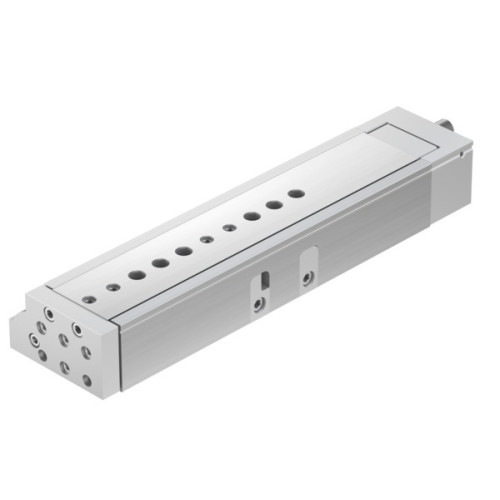

DGSL-25-150-EA Mini slide

Manufacturer's No: DGSL-25-150-EA     Manufacturer: Festo
DGSL-25-150-EA Mini slide

Availability Back Order

£1,040.08
  • Model: DGSL-25-150-EA Mini slide
  • Stroke: 150 mm
  • Adjustable end position range/length front: 66.5 mm
  • Adjustable end position range/length rear: 5.5 mm
  • Piston diameter: 32 mm
  • Operating mode: Yoke drive unit
  • Cushioning: Short elastic cushioning rings/pads at both ends
  • Guide: Ball bearing cage guide
  • Position detection: Via proximity switch
  • Operating pressure: 0.1 MPa, 0.8 MPa, 1 bar, 8 bar

Read more

  • Max. speed: 0.8 m/s
  • Repetition accuracy: 0.3 mm
  • Mode of operation: Double-acting
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 0 - No corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Ambient temperature: 0°C to 60°C
  • Impact energy in end positions: 0.55 Nm
  • Cushioning length: 1.3 mm
  • Max. force: Fy 4800 N, Fz 4800 N
  • Max. moment: Mx 130 Nm, My 80 Nm, Mz 80 Nm
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke: 415 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke: 483 N
  • Moving mass: 2102 g
  • Product weight: 5424 g
  • Type of mounting: With through-hole
  • Pneumatic connection: G1/8
  • Material cover: Wrought aluminium alloy
  • Material seals: HNBR
  • Material housing: Wrought aluminium alloy
  • Material piston rod: High-alloy stainless steel
  • Note: Lubricated operation possible, RoHS-compliant materials

Accessories

PUSH IN FITTING (PK 10)

Product Code - 186096
Price £2.38
Back Order

PUN-H-6X1-BL 6MM PLASTIC TUBING

Product Code - 197384
Price £1.09
Back Order

QS-G1/8-6-I PUSH-IN FITTING

Product Code - 186107
Price £2.72
Back Order

QSL-G1/8-6 PUSH-IN L-FITTING

Product Code - 186117
Price £3.66
Back Order

PUN-H-6X1-NT 6MM PLASTIC TUBING

Product Code - 197377
Price £1.09
Back Order


Product

Manufacturer Material ID -
DGSL-25-150-EA
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability Back Order

£1,040.08
