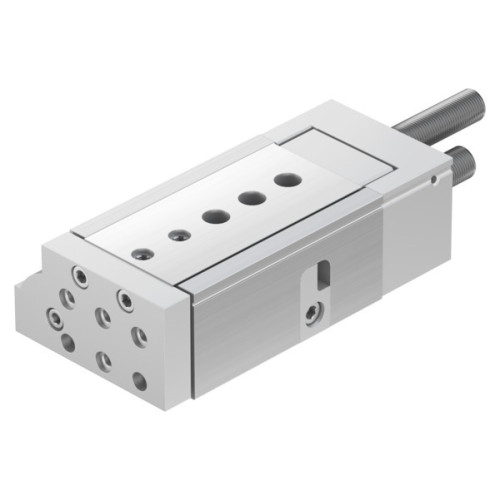

DGSL-25-30-PA Mini slide

Manufacturer's No: DGSL-25-30-PA     Manufacturer: Festo
DGSL-25-30-PA Mini slide

Availability On Request

£668.22
  • Mini slide DGSL-25-30-PA with position sensing
  • Stroke: 30 mm
  • Adjustable end position range/front length: 55 mm
  • Adjustable end position range/rear length: 49 mm
  • Piston diameter: 32 mm
  • Operating pressure: 0.1 MPa to 0.8 MPa
  • Max. speed: 0.8 m/s
  • Repetition accuracy: 0.3 mm
  • Mode of operation: Double-acting
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]

Read more

  • Corrosion resistance class CRC: 0 - No corrosion stress
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Ambient temperature: 0°C to 60°C
  • Impact energy in end positions: 0.55 Nm
  • Cushioning length: 1.3 mm
  • Max. force Fy: 4205 N
  • Max. force Fz: 4205 N
  • Max. moment Mx: 100 Nm
  • Max. moment My: 60 Nm
  • Max. moment Mz: 60 Nm
  • Moving mass: 1115 g
  • Product weight: 2932 g
  • Material cover: Wrought aluminium alloy
  • Material seals: HNBR
  • Material housing: Wrought aluminium alloy
  • Material piston rod: High-alloy stainless steel
  • Pneumatic connection: G1/8
  • Type of mounting: With through-hole
  • Position detection: Via proximity switch
  • Cushioning: Elastic cushioning rings/plates at both ends
  • Mounting position: Optional
  • Guide: Ball bearing cage guide
  • Design: Yoke, Piston, Piston rod, Slide
  • Symbol: 991263
  • Note on operating and pilot medium: Lubricated operation possible
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Alternative connections: See product drawing
  • Note on materials: RoHS-compliant


Product

Manufacturer Material ID -
DGSL-25-30-PA
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
