570207

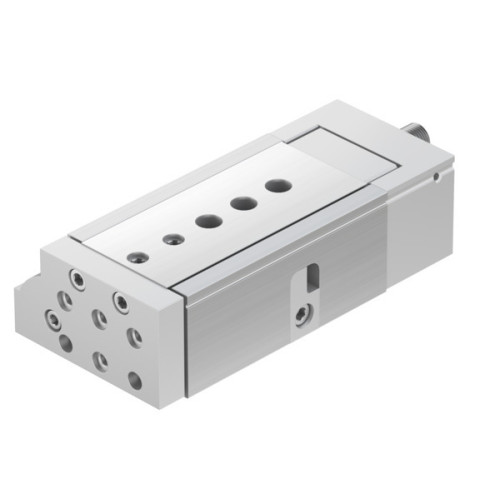

DGSL-25-40-EA Mini slide

Manufacturer's No: DGSL-25-40-EA     Manufacturer: Festo
DGSL-25-40-EA Mini slide

Availability On Request

£676.50
  • Model: DGSL-25-40-EA Mini slide
  • Stroke: 40mm
  • Piston Diameter: 32mm
  • Adjustable End Position Range/Length Front: 11.5mm
  • Adjustable End Position Range/Length Rear: 5.5mm
  • Operating Mode: Yoke drive unit
  • Cushioning: Short elastic cushioning rings/pads at both ends
  • Guide: Ball bearing cage guide
  • Position Detection: Via proximity switch
  • Operating Pressure: 0.1MPa, 0.8MPa, 1 bar, 8 bar

Read more

  • Max. Speed: 0.8m/s
  • Repetition Accuracy: 0.3mm
  • Mode of Operation: Double-acting
  • Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion Resistance Class CRC: 0 (No corrosion stress)
  • LABS (PWIS) Conformity: VDMA24364-B1/B2-L
  • Cleanroom Class: Class 7 according to ISO 14644-1
  • Ambient Temperature: 0°C to 60°C
  • Impact Energy in End Positions: 0.55Nm
  • Cushioning Length: 1.3mm
  • Max. Force Fy: 4643N
  • Max. Force Fz: 4643N
  • Max. Moment Mx: 110Nm
  • Max. Moment My: 60Nm
  • Max. Moment Mz: 60Nm
  • Theoretical Force at 0.6MPa (6 bar, 87 psi), Return Stroke: 415N
  • Theoretical Force at 0.6MPa (6 bar, 87 psi), Advance Stroke: 483N
  • Moving Mass: 1181g
  • Product Weight: 3063g
  • Alternative Connections: Refer to product drawing
  • Type of Mounting: With through-hole
  • Pneumatic Connection: G1/8
  • Material: RoHS-compliant
  • Material Cover: Wrought aluminium alloy
  • Material Seals: HNBR
  • Material Housing: Wrought aluminium alloy
  • Material Piston Rod: High-alloy stainless steel


Product

Manufacturer Material ID -
DGSL-25-40-EA
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£676.50
