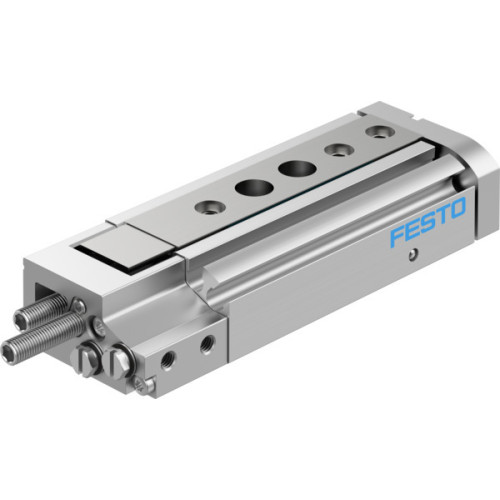

DGSL-4-20-P1A Mini slide

Manufacturer's No: DGSL-4-20-P1A     Manufacturer: Festo
DGSL-4-20-P1A Mini slide

Availability On Request

£552.78
  • Mini slide DGSL-4-20-P1A for position sensing
  • Highly accurate and durable ball-cage guide
  • Very high repetition accuracy
  • Stroke: 20 mm
  • Adjustable end position range/front length: 24.5 mm
  • Adjustable end position range/rear length: 13.5 mm
  • Piston diameter: 6 mm
  • Operating mode of drive unit: Yoke
  • Elastic cushioning rings/pads at both ends with fixed stop
  • Guide: Ball bearing cage guide

Read more

  • Position detection: Via proximity switch
  • Operating pressure: 0.25 MPa, 0.8 MPa, 2.5 bar, 8 bar
  • Max. speed: 0.5 m/s
  • Repetition accuracy: ±0.01 mm
  • Mode of operation: Double-acting
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 0 - No corrosion stress
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Ambient temperature: 0°C to 60°C
  • Impact energy in end positions: 0.005 Nm
  • Cushioning length: 1.7 mm
  • Max. force Fy: 368 N
  • Max. force Fz: 368 N
  • Max. moment Mx, My, Mz: 2 Nm
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke: 13 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke: 17 N
  • Moving mass: 34 g
  • Product weight: 96 g
  • Pneumatic connection: M3
  • Material cover: Wrought aluminium alloy
  • Material seals: HNBR
  • Material housing: Wrought aluminium alloy
  • Material piston rod: High-alloy stainless steel


Product

Manufacturer Material ID -
DGSL-4-20-P1A
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
