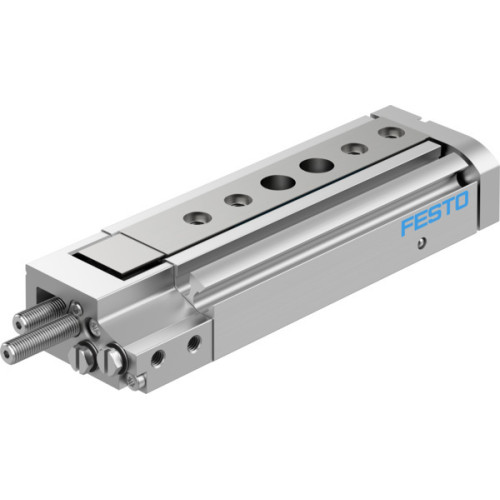

DGSL-4-30-PA Mini slide

Manufacturer's No: DGSL-4-30-PA     Manufacturer: Festo
DGSL-4-30-PA Mini slide

Availability On Request

£528.03
  • Mini slide DGSL-4-30-PA with position sensing
  • Stroke: 30 mm
  • Adjustable end position range/front length: 25.5 mm
  • Adjustable end position range/rear length: 13.5 mm
  • Piston diameter: 6 mm
  • Operating mode of drive unit: Yoke
  • Cushioning: Elastic cushioning rings/plates at both ends
  • Guide: Ball bearing cage guide
  • Position detection: Via proximity switch
  • Operating pressure: 0.25 MPa, 0.8 MPa, 2.5 bar, 8 bar

Read more

  • Max. speed: 0.5 m/s
  • Repetition accuracy: 0.3 mm
  • Mode of operation: Double-acting
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 0 - No corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Ambient temperature: 0°C, 60°C
  • Impact energy in end positions: 0.015 Nm
  • Cushioning length: 0.9 mm
  • Max. force Fy: 387 N
  • Max. force Fz: 387 N
  • Max. moment Mx, My, Mz: 2 Nm
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke: 13 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke: 17 N
  • Moving mass: 38 g
  • Product weight: 108 g
  • Material cover, housing: Wrought aluminium alloy
  • Material seals: HNBR
  • Material piston rod: High-alloy stainless steel
  • Type of mounting: With through-hole
  • Pneumatic connection: M3
  • Note on materials: RoHS-compliant
  • Alternative connections: See product drawing


Product

Manufacturer Material ID -
DGSL-4-30-PA
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
