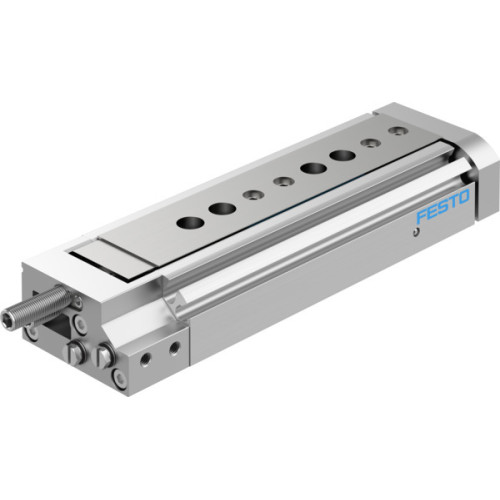

DGSL-6-50-P1A Mini slide

Manufacturer's No: DGSL-6-50-P1A     Manufacturer: Festo
DGSL-6-50-P1A Mini slide

Availability On Request

£643.62
  • Mini slide DGSL-6-50-P1A for precise position sensing
  • Stroke: 50 mm with adjustable end position range of 30.5 mm (front) and 15 mm (rear)
  • Piston diameter: 8 mm
  • Drive unit operating mode: Yoke
  • Highly accurate and durable ball-cage guide with flexible damping on both sides
  • Metallic end position (P1) for increased durability
  • Repetition accuracy: ±0.01 mm
  • Max. speed: 0.5 m/s
  • Operating pressure: 0.15 MPa to 8 bar
  • Double-acting operation

Read more

  • Operating medium: Compressed air (ISO 8573-1:2010 [7:4:4])
  • Corrosion resistance class CRC: 0 (No corrosion stress)
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Ambient temperature range: 0°C to 60°C
  • Impact energy in end positions: 0.02 Nm
  • Cushioning length: 2.8 mm
  • Max. force: 719 N (Fy and Fz)
  • Max. moment: 8 Nm (Mx), 5.5 Nm (My and Mz)
  • Theoretical force at 0.6 MPa (6 bar, 87 psi): 23 N (return stroke) and 30 N (advance stroke)
  • Moving mass: 99 g, Product weight: 238 g
  • Material: Wrought aluminium alloy cover and housing, HNBR seals, High-alloy stainless steel piston rod
  • Pneumatic connection: M3
  • RoHS-compliant materials
  • Mounting: With through-hole, Position detection via proximity switch
  • Cushioning: Elastic cushioning rings/pads with fixed stop
  • Mounting position: Optional
  • Guide: Ball bearing cage guide
  • Symbol: 991263


Product

Manufacturer Material ID -
DGSL-6-50-P1A
Net Weight -
0.28kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£643.62
