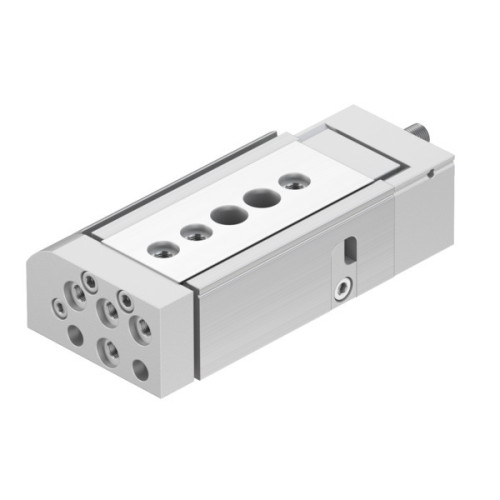

DGSL-8-10-EA Mini slide

Manufacturer's No: DGSL-8-10-EA     Manufacturer: Festo
DGSL-8-10-EA Mini slide

Availability On Request

£457.76
  • Mini slide with a stroke of 10mm
  • Adjustable end position range: Front 4.5mm, Rear 3.5mm
  • Piston diameter: 10mm
  • Operating mode: Yoke drive unit
  • Cushioning: Short elastic cushioning rings/pads at both ends
  • Guide: Ball bearing cage guide
  • Position detection: Via proximity switch
  • Operating pressure: 0.15MPa, 0.8MPa, 1.5 bar, 8 bar
  • Max. speed: 0.8m/s
  • Repetition accuracy: 0.3mm

Read more

  • Mode of operation: Double-acting
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 0 - No corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Ambient temperature: 0°C to 60°C
  • Impact energy in end positions: 0.08Nm
  • Cushioning length: 1.5mm
  • Max. force: Fy 657N, Fz 657N
  • Max. moment: Mx 7Nm, My 5.5Nm, Mz 5.5Nm
  • Theoretical force at 0.6MPa (6 bar, 87 psi): Return stroke 40N, Advance stroke 47N
  • Moving mass: 101g
  • Product weight: 241g
  • Type of mounting: With through-hole
  • Pneumatic connection: M3
  • Material cover: Wrought aluminium alloy
  • Material seals: HNBR
  • Material housing: Wrought aluminium alloy
  • Material piston rod: High-alloy stainless steel
  • Note: Lubricated operation possible, RoHS-compliant materials


Product

Manufacturer Material ID -
DGSL-8-10-EA
Net Weight -
0.28kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
