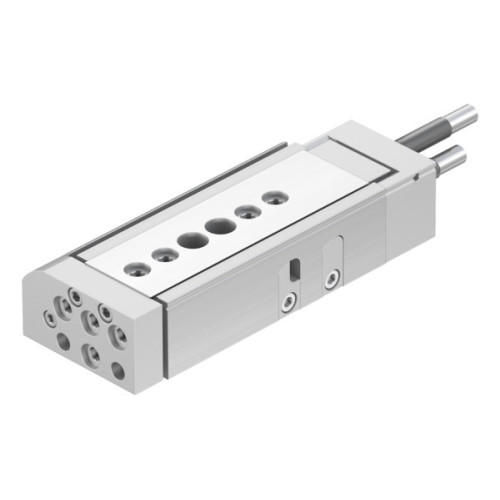

DGSL-8-30-Y3A Mini slide

Manufacturer's No: DGSL-8-30-Y3A     Manufacturer: Festo
DGSL-8-30-Y3A Mini slide

Availability On Request

£684.79
  • Mini slide DGSL-8-30-Y3A for position sensing
  • Stroke: 30 mm
  • Highly accurate and durable ball-cage guide
  • Hydraulic shock absorbers on both sides (Y3)
  • Adjustable end position range/front length: 31 mm
  • Adjustable end position range/rear length: 14 mm
  • Piston diameter: 10 mm
  • Operating mode of drive unit: Yoke
  • Progressive shock absorber at both ends for cushioning
  • Repetition accuracy: ±0.01 mm

Read more

  • Max. speed: 0.8 m/s
  • Operating pressure: 0.15 MPa to 8 bar
  • Double-acting mode of operation
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 0 - No corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Ambient temperature range: 0°C to 60°C
  • Impact energy in end positions: 0.5 Nm
  • Cushioning length: 6 mm
  • Max. force Fy: 850 N
  • Max. force Fz: 850 N
  • Max. moment Mx: 9 Nm
  • Max. moment My: 5.5 Nm
  • Max. moment Mz: 5.5 Nm
  • Theoretical force at 0.6 MPa (6 bar, 87 psi) - return stroke: 40 N, advance stroke: 47 N
  • Moving mass: 121 g
  • Product weight: 299 g
  • Material cover: Wrought aluminium alloy
  • Material seals: HNBR
  • Material housing: Wrought aluminium alloy
  • Material piston rod: High-alloy stainless steel
  • Type of mounting: With through-hole
  • Pneumatic connection: M3
  • RoHS-compliant materials
  • Position detection via proximity switch


Product

Manufacturer Material ID -
DGSL-8-30-Y3A
Net Weight -
0.35kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
