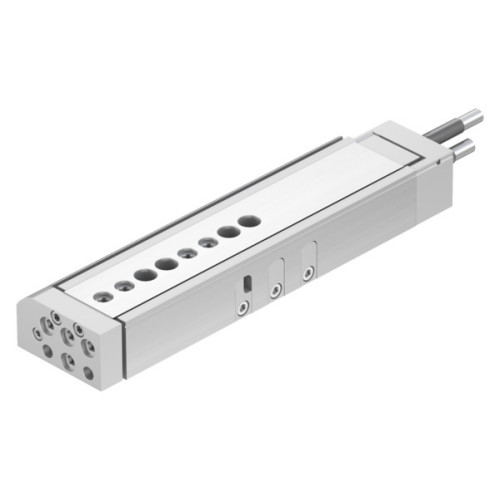

DGSL-8-80-Y3A Mini slide

Manufacturer's No: DGSL-8-80-Y3A     Manufacturer: Festo
DGSL-8-80-Y3A Mini slide

Availability On Request

£850.04
  • Mini slide DGSL-8-80-Y3A for precise position sensing
  • Stroke: 80 mm
  • Highly accurate ball-cage guide with hydraulic shock absorbers on both sides
  • Repetition accuracy: ±0.01 mm
  • Piston diameter: 10 mm
  • Operating pressure: 0.15 MPa to 8 bar
  • Max. speed: 0.8 m/s
  • Progressive shock absorber cushioning at both ends
  • Mounting position: optional
  • Position detection via proximity switch

Read more

  • Cleanroom class: Class 7 according to ISO 14644-1
  • Operating temperature: 0°C to 60°C
  • Corrosion resistance class CRC: 0 - No corrosion stress
  • Material: Wrought aluminium alloy cover and housing, HNBR seals, high-alloy stainless steel piston rod
  • Weight: 464 g
  • Moving mass: 185 g
  • RoHS-compliant materials
  • Type of mounting: With through-hole
  • Pneumatic connection: M3
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L


Product

Manufacturer Material ID -
DGSL-8-80-Y3A
Net Weight -
0.53kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£850.04
