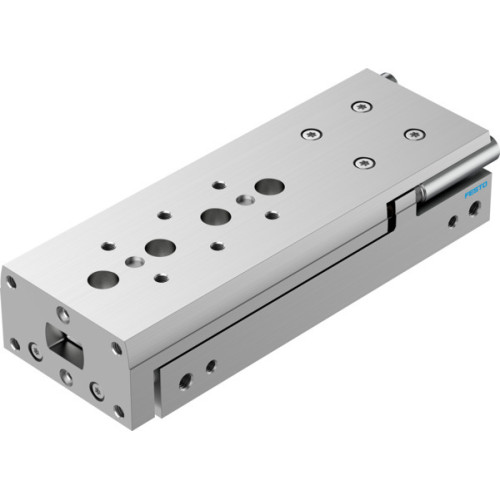

DGST-10-80-PA Mini slide

Manufacturer's No: DGST-10-80-PA     Manufacturer: Festo
DGST-10-80-PA Mini slide

Availability On Request

£507.16
  • Product: DGST-10-80-PA Mini slide
  • Stroke: 80 mm
  • Adjustable end position range/length front: 16.7 mm
  • Adjustable end position range/length rear: 15.1 mm
  • Piston diameter: 10 mm
  • Operating mode: Yoke drive unit
  • Cushioning: Elastic cushioning rings/plates at both ends
  • Guide: Recirculating ball bearing guide
  • Design: Twin piston, Yoke, Piston rod, Slide
  • Position detection: Via proximity switch

Read more

  • Operating pressure: 0.1 MPa, 0.8 MPa, 1 bar, 8 bar, 14.5 psi, 116 psi
  • Max. speed: 0.8 m/s
  • Repetition accuracy: <= 0.3 mm
  • Mode of operation: Double-acting
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 1 - Low corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Cleanroom class: Class 6 according to ISO 14644-1
  • Ambient temperature: -10°C to 60°C
  • Impact energy in end positions: 0.08 J
  • Cushioning length: 1.5 mm
  • Max. force Fy: 520 N
  • Max. force Fz: 520 N
  • Max. moment Mx: 6 Nm
  • Max. moment My: 5 Nm
  • Max. moment Mz: 5 Nm
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke: 79 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke: 94 N
  • Moving mass: 251.7 g
  • Product weight: 519.4 g
  • Type of mounting: With through-hole
  • Pneumatic connection: M5
  • Material cover: Wrought aluminium alloy
  • Material seals: HNBR
  • Material guide: POM, TPE-E, High-alloy steel
  • Material housing: Wrought aluminium alloy
  • Material piston rod: High-alloy stainless steel
  • Note: RoHS-compliant materials, lubricated operation possible


Product

Manufacturer Material ID -
DGST-10-80-PA
Net Weight -
0.51kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
