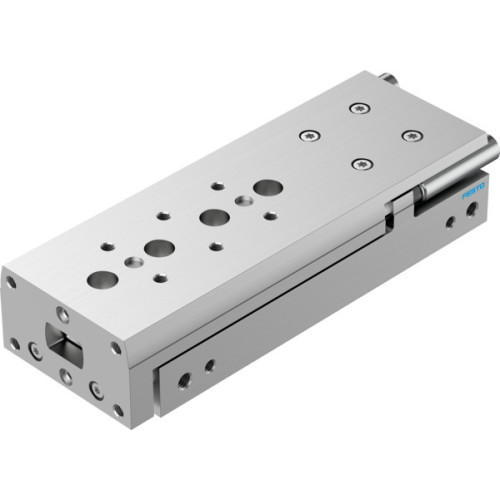

DGST-10-80-Y12A Mini slide

Manufacturer's No: DGST-10-80-Y12A     Manufacturer: Festo
DGST-10-80-Y12A Mini slide

Availability On Request

£623.65
  • Mini slide with a stroke of 80mm
  • Adjustable end position range: Front - 16.2mm, Rear - 14.5mm
  • Piston diameter: 10mm
  • Operating mode: Yoke drive unit
  • External hydraulic cushioning for cushioning
  • Mounting position is optional
  • Features a recirculating ball bearing guide
  • Design includes twin piston, yoke, piston rod, and slide
  • Position detection via proximity switch
  • Operating pressure ranges from 0.1MPa to 8BAR

Read more

  • Maximum speed of 0.8m/s
  • Repetition accuracy of <= 0.02mm
  • Double-acting mode of operation
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 1 - Low corrosion stress
  • Cleanroom class: Class 6 according to ISO 14644-1
  • Ambient temperature range: -10°C to 60°C
  • Impact energy in end positions: 0.8J
  • Cushioning length: 4mm
  • Maximum forces: Fy and Fz - 520N, Mx, My, and Mz - 6NM, 5NM, and 5NM respectively
  • Theoretical forces at 0.6MPa (6bar, 87psi): Return stroke - 79N, Advance stroke - 94N
  • Moving mass: 250.2g, Product weight: 516.4g
  • Type of mounting: With through-hole
  • Pneumatic connection: M5
  • RoHS-compliant materials used
  • Materials include wrought aluminium alloy, HNBR seals, POM and TPE-E guides, high-alloy steel, and high-alloy stainless steel for piston rod


Product

Manufacturer Material ID -
DGST-10-80-Y12A
Net Weight -
0.52kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
