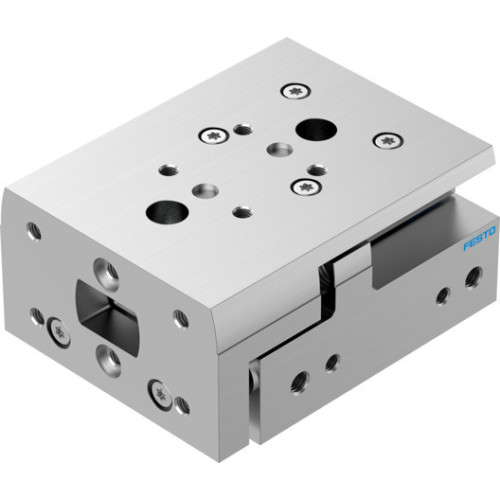

DGST-12-20-E1A Mini slide

Manufacturer's No: DGST-12-20-E1A     Manufacturer: Festo
DGST-12-20-E1A Mini slide

Availability On Request

£359.59
  • Mini slide with a stroke of 20mm and a piston diameter of 12mm
  • Operating mode: Yoke drive unit with elastomer cushioning (double-sided, stroke not adjustable)
  • Mounting position: optional
  • Guide: Recirculating ball bearing guide
  • Design: Twin piston, Yoke, Piston rod, Slide
  • Position detection via proximity switch
  • Operating pressure range: 0.1 MPa to 8 bar (1 to 116 PSI)
  • Max. speed: 0.5 m/s
  • Repetition accuracy: <= 0.3mm
  • Double-acting mode of operation

Read more

  • Operating medium: Compressed air (ISO 8573-1:2010 [7:4:4])
  • Lubricated operation possible
  • Corrosion resistance class CRC: 1 (Low corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Cleanroom class: Class 6 (ISO 14644-1)
  • Ambient temperature range: -10°C to 60°C
  • Impact energy in end positions: 0.07 J
  • Cushioning length: 1.1mm
  • Max. forces: Fy and Fz 520N, Mx, My, and Mz 4.2Nm
  • Theoretical forces at 0.6 MPa: 102N (return stroke), 136N (advance stroke)
  • Moving mass: 238g, Product weight: 456g
  • Type of mounting: With through-hole
  • Pneumatic connection: M5
  • RoHS-compliant materials
  • Materials: Cover - Wrought aluminium alloy, Seals - HNBR, Guides - POM, TPE-E, High-alloy steel, Housing - Wrought aluminium alloy, Piston rod - High-alloy stainless steel


Product

Manufacturer Material ID -
DGST-12-20-E1A
Net Weight -
0.45kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
