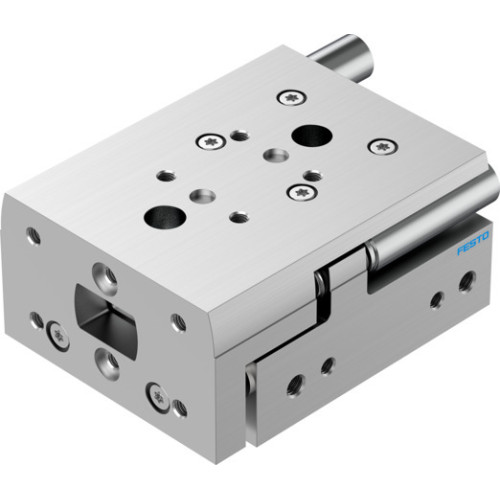

DGST-12-20-PA Mini slide

Manufacturer's No: DGST-12-20-PA     Manufacturer: Festo
DGST-12-20-PA Mini slide

Availability On Request

£409.53
  • Model: DGST-12-20-PA Mini slide
  • Stroke: 20 mm
  • Piston diameter: 12 mm
  • Operating pressure: 0.1 MPa, 0.8 MPa, 1 bar, 8 bar, 14.5 psi, 116 psi
  • Max. speed: 0.8 m/s
  • Repetition accuracy: <= 0.3 mm
  • Operating mode: Double-acting
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible
  • Corrosion resistance class CRC: 1 - Low corrosion stress
  • Cleanroom class: Class 6 according to ISO 14644-1

Read more

  • Ambient temperature: -10°C to 60°C
  • Impact energy in end positions: 0.12 J
  • Cushioning: Elastic cushioning rings/plates at both ends, cushioning length: 1.3 mm
  • Max. force: Fy 520 N, Fz 520 N
  • Max. moment: Mx 4.2 Nm, My 4.2 Nm, Mz 4.2 Nm
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke: 102 N, advance stroke: 136 N
  • Moving mass: 261 g, product weight: 502 g
  • Type of mounting: With through-hole
  • Pneumatic connection: M5
  • Material: Cover - Wrought aluminium alloy, seals - HNBR, guide - POM, TPE-E, high-alloy steel, housing - Wrought aluminium alloy, piston rod - High-alloy stainless steel


Product

Manufacturer Material ID -
DGST-12-20-PA
Net Weight -
0.51kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£409.53
