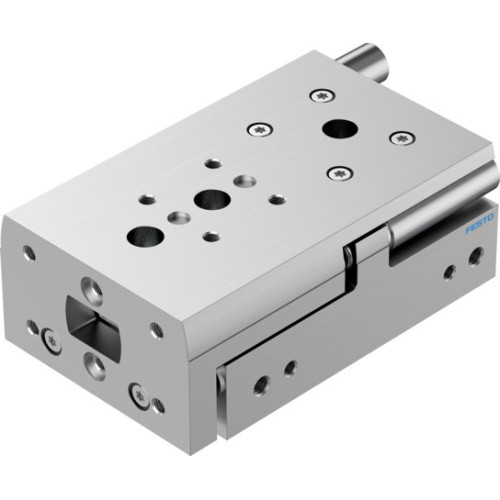

DGST-12-40-PA Mini slide

Manufacturer's No: DGST-12-40-PA     Manufacturer: Festo
DGST-12-40-PA Mini slide

Availability On Request

£459.25
  • Product: DGST-12-40-PA Mini slide
  • Stroke: 40mm
  • Piston diameter: 12mm
  • Operating pressure: 0.1 MPa, 0.8 MPa, 1 bar, 8 bar, 14.5 psi, 116 psi
  • Max. speed: 0.8 m/s
  • Repetition accuracy: <= 0.3mm
  • Mode of operation: Double-acting
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 1 - Low corrosion stress
  • Cleanroom class: Class 6 according to ISO 14644-1

Read more

  • Ambient temperature: -10°C to 60°C
  • Impact energy in end positions: 0.12 J
  • Cushioning length: 1.3mm
  • Max. force Fy: 560N
  • Max. force Fz: 560N
  • Max. moment Mx, My, Mz: 5.8 Nm
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke: 102N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke: 136N
  • Moving mass: 307g
  • Product weight: 609g
  • Type of mounting: With through-hole
  • Pneumatic connection: M5
  • Material cover: Wrought aluminium alloy
  • Material seals: HNBR
  • Material guide: POM, TPE-E, High-alloy steel
  • Material housing: Wrought aluminium alloy
  • Material piston rod: High-alloy stainless steel


Product

Manufacturer Material ID -
DGST-12-40-PA
Net Weight -
0.59kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
