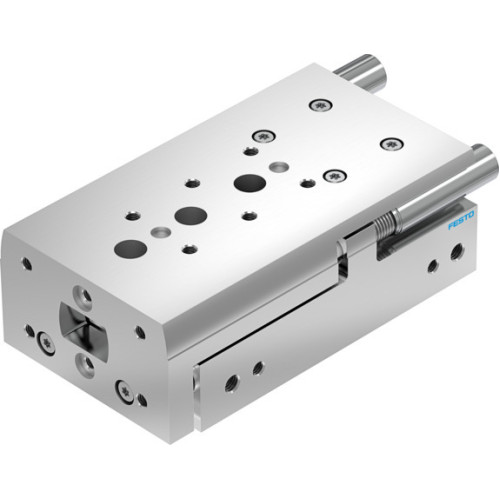

DGST-12-80-Y12A Mini slide

Manufacturer's No: DGST-12-80-Y12A     Manufacturer: Festo
DGST-12-80-Y12A Mini slide

Availability On Request

£652.75
  • Product: DGST-12-80-Y12A Mini slide
  • Stroke: 80mm
  • Adjustable end position range/length front: 16.7mm
  • Adjustable end position range/length rear: 15.2mm
  • Piston diameter: 12mm
  • Operating mode: Yoke drive unit
  • Cushioning: External hydraulic cushioning
  • Guide: Recirculating ball bearing guide
  • Design: Twin piston, Yoke, Piston rod, Slide
  • Position detection: Via proximity switch

Read more

  • Operating pressure: 0.1MPa, 0.8MPa, 1bar, 8bar, 14.5psi, 116psi
  • Max. speed: 0.8m/s
  • Repetition accuracy: <= 0.02mm
  • Mode of operation: Double-acting
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 1 - Low corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Cleanroom class: Class 6 according to ISO 14644-1
  • Ambient temperature: -10°C to 60°C
  • Impact energy in end positions: 1.4J
  • Cushioning length: 5mm
  • Max. force Fy: 600N
  • Max. force Fz: 600N
  • Max. moment Mx: 8.9Nm
  • Max. moment My: 6.5Nm
  • Max. moment Mz: 6.5Nm
  • Theoretical force at 0.6MPa (6bar, 87psi), return stroke: 102N
  • Theoretical force at 0.6MPa (6bar, 87psi), advance stroke: 136N
  • Moving mass: 376g
  • Product weight: 808g
  • Type of mounting: With through-hole
  • Pneumatic connection: M5
  • Materials: RoHS-compliant
  • Material cover: Wrought aluminium alloy
  • Material seals: HNBR
  • Material guide: POM, TPE-E, High-alloy steel
  • Material housing: Wrought aluminium alloy
  • Material piston rod: High-alloy stainless steel


Product

Manufacturer Material ID -
DGST-12-80-Y12A
Net Weight -
0.82kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
