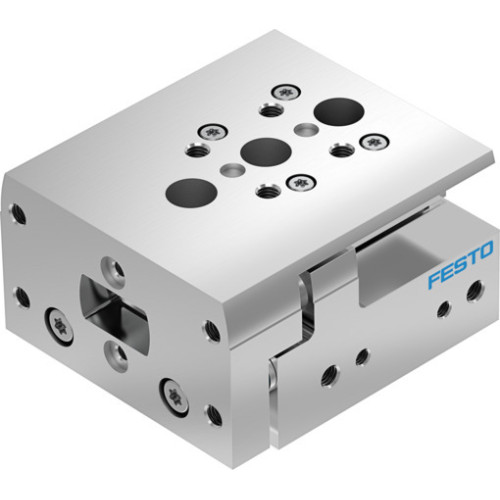

DGST-16-10-E1A Mini slide

Manufacturer's No: DGST-16-10-E1A     Manufacturer: Festo
DGST-16-10-E1A Mini slide

Availability On Request

£394.43
  • Mini slide with a stroke of 10mm and a piston diameter of 16mm
  • Operating mode: Yoke drive unit with elastomer cushioning (double-sided, stroke not adjustable)
  • Mounting position: optional; Guide: Recirculating ball bearing guide
  • Design features: Twin piston, Yoke, Piston rod, Slide
  • Position detection via proximity switch; Symbol: 991249
  • Operating pressure range: 0.1 MPa to 14.5 PSI
  • Maximum speed: 0.5 m/s; Repetition accuracy: <= 0.3mm
  • Double-acting operation with compressed air (ISO 8573-1:2010 [7:4:4])
  • Corrosion resistance class CRC: 1 (Low corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L; Cleanroom class: Class 6 (ISO 14644-1)

Read more

  • Ambient temperature range: -10°C to 60°C
  • Impact energy in end positions: 0.15 J; Cushioning length: 0.8mm
  • Max. forces: Fy = 820N, Fz = 820N; Max. moments: Mx = 11.3Nm, My = 7Nm, Mz = 7Nm
  • Theoretical forces at 0.6 MPa (6 bar, 87 psi): Return stroke = 207N, Advance stroke = 241N
  • Moving mass: 235g; Product weight: 454g
  • Type of mounting: With through-hole; Pneumatic connection: M5
  • RoHS-compliant materials: Wrought aluminium alloy (cover, housing), HNBR (seals), POM, TPE-E (guide), High-alloy steel (guide), High-alloy stainless steel (piston rod)


Product

Manufacturer Material ID -
DGST-16-10-E1A
Net Weight -
0.48kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
