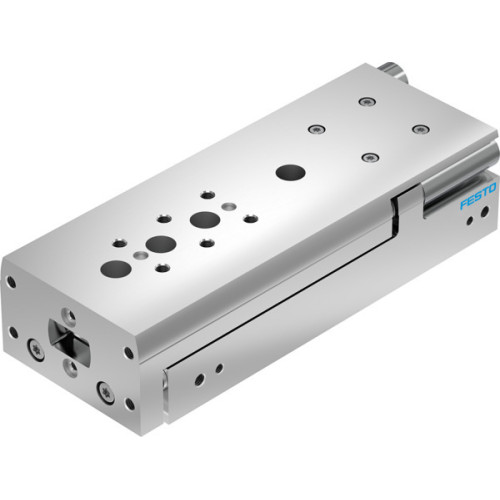

DGST-16-100-PA Mini slide

Manufacturer's No: DGST-16-100-PA     Manufacturer: Festo
DGST-16-100-PA Mini slide

Availability On Request

£703.50
  • Mini slide with a stroke of 100mm
  • Adjustable end position range: front 22.8mm, rear 21.5mm
  • Piston diameter: 16mm
  • Operating mode: Yoke drive unit
  • Cushioning: Elastic cushioning rings/plates at both ends
  • Guide: Recirculating ball bearing guide
  • Design: Twin piston, Yoke, Piston rod, Slide
  • Position detection: Via proximity switch
  • Operating pressure: 0.1MPa, 0.8MPa, 1 bar, 8 bar, 14.5 psi, 116 psi
  • Max. speed: 0.8m/s

Read more

  • Repetition accuracy: <= 0.3mm
  • Mode of operation: Double-acting
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 1 - Low corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Cleanroom class: Class 6 according to ISO 14644-1
  • Ambient temperature: -10°C to 60°C
  • Impact energy in end positions: 0.25J
  • Cushioning length: 1mm
  • Max. force: Fy 940N, Fz 940N
  • Max. moment: Mx 12Nm, My 10Nm, Mz 10Nm
  • Theoretical force at 0.6MPa (6 bar, 87 psi): return stroke 207N, advance stroke 241N
  • Moving mass: 556g
  • Product weight: 1142g
  • Type of mounting: With through-hole
  • Pneumatic connection: M5
  • Materials: RoHS-compliant, cover - Wrought aluminium alloy, seals - HNBR, guide - POM, TPE-E, high-alloy steel, housing - Wrought aluminium alloy, piston rod - High-alloy stainless steel


Product

Manufacturer Material ID -
DGST-16-100-PA
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
