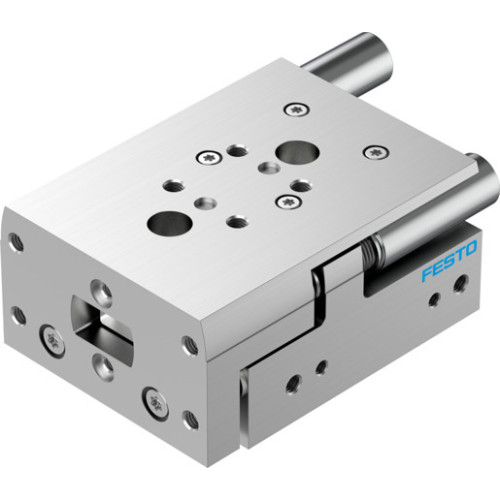

DGST-16-30-PA Mini slide

Manufacturer's No: DGST-16-30-PA     Manufacturer: Festo
DGST-16-30-PA Mini slide

Availability On Request

£508.26
  • Mini slide with a stroke of 30mm
  • Adjustable end position range: 22.8mm (front) and 21.5mm (rear)
  • Piston diameter: 16mm
  • Operating mode: Yoke drive unit
  • Cushioning with elastic rings/plates at both ends
  • Guide: Recirculating ball bearing guide
  • Design: Twin piston, Yoke, Piston rod, Slide
  • Position detection via proximity switch
  • Operating pressure: 0.1MPa, 0.8MPa, 1BAR, 8BAR, 14.5PSI, 116PSI
  • Max. speed: 0.8m/s

Read more

  • Repetition accuracy: <= 0.3mm
  • Double-acting operation
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 1 (Low corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Cleanroom class: Class 6 according to ISO 14644-1
  • Ambient temperature: -10°C to 60°C
  • Impact energy in end positions: 0.25J
  • Cushioning length: 1mm
  • Max. forces: Fy 860N, Fz 860N, Mx 11.3Nm, My 7.5Nm, Mz 7.5Nm
  • Theoretical force at 0.6MPa (6bar, 87psi): Return stroke 207N, Advance stroke 241N
  • Moving mass: 318g, Product weight: 592g
  • Type of mounting: With through-hole
  • Pneumatic connection: M5
  • RoHS-compliant materials
  • Materials: Cover - Wrought aluminium alloy, Seals - HNBR, Guide - POM, TPE-E, High-alloy steel, Housing - Wrought aluminium alloy, Piston rod - High-alloy stainless steel


Product

Manufacturer Material ID -
DGST-16-30-PA
Net Weight -
0.68kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
