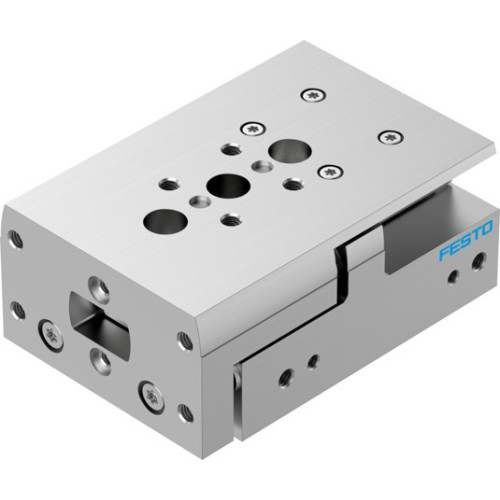

DGST-16-40-E1A Mini slide

Manufacturer's No: DGST-16-40-E1A     Manufacturer: Festo
DGST-16-40-E1A Mini slide

Availability On Request

£467.38
  • Mini slide with a stroke of 40mm and a piston diameter of 16mm
  • Operating mode: Yoke with elastomer cushioning (double-sided, non-adjustable)
  • Mounting position: Optional
  • Guide: Recirculating ball bearing guide for smooth operation
  • Design: Twin piston with yoke and piston rod
  • Position detection via proximity switch with symbol 991249
  • Operating pressure ranges from 0.1 MPa to 14.5 PSI
  • Maximum speed of 0.5 m/s with a repetition accuracy of <= 0.3mm
  • Double-acting operation suitable for compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 1 (Low corrosion stress)

Read more

  • Cleanroom class: Class 6 according to ISO 14644-1
  • Operating temperature range from -10°C to 60°C
  • Impact energy in end positions: 0.15 J with cushioning length of 0.8mm
  • Maximum forces: Fy and Fz at 880N, Mx, My, and Mz at 11.3Nm, 8Nm, and 8Nm respectively
  • Theoretical forces at 0.6 MPa: 207N (return stroke) and 241N (advance stroke)
  • Moving mass of 324g and product weight of 629g
  • Type of mounting: With through-hole and pneumatic connection: M5
  • RoHS-compliant materials: Wrought aluminium alloy cover, HNBR seals, POM and TPE-E guides, high-alloy steel guide, and high-alloy stainless steel piston rod


Product

Manufacturer Material ID -
DGST-16-40-E1A
Net Weight -
0.63kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£467.38
