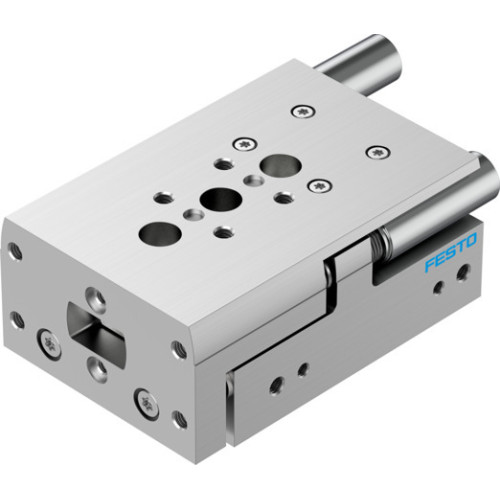

DGST-16-40-PA Mini slide

Manufacturer's No: DGST-16-40-PA     Manufacturer: Festo
DGST-16-40-PA Mini slide

Availability Back Order

£536.16
  • Model: DGST-16-40-PA Mini slide
  • Stroke: 40 mm
  • Piston diameter: 16 mm
  • Operating pressure: 0.1 MPa, 0.8 MPa, 1 bar, 8 bar, 14.5 psi, 116 psi
  • Max. speed: 0.8 m/s
  • Repetition accuracy: ? 0.3 mm
  • Mode of operation: Double-acting
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 1 (Low corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L

Read more

  • Cleanroom class: Class 6 according to ISO 14644-1
  • Ambient temperature: -10°C to 60°C
  • Impact energy in end positions: 0.25 J
  • Cushioning: Elastic cushioning rings/plates at both ends, cushioning length: 1 mm
  • Max. force: Fy 880 N, Fz 880 N
  • Max. moment: Mx 11.3 Nm, My 8 Nm, Mz 8 Nm
  • Theoretical force at 0.6 MPa (6 bar, 87 psi): Return stroke 207 N, advance stroke 241 N
  • Moving mass: 365 g, Product weight: 711 g
  • Type of mounting: With through-hole
  • Pneumatic connection: M5
  • Material cover: Wrought aluminium alloy
  • Material seals: HNBR
  • Material guide: POM, TPE-E, High-alloy steel
  • Material housing: Wrought aluminium alloy
  • Material piston rod: High-alloy stainless steel

Accessories

ZBH-9-B Centring sleeve

Product Code - 8137184
Price £1.59
Back Order

ZBH-7-B Centring sleeve

Product Code - 8146544
Price £1.32
Back Order

ZBH-5-B Centring sleeve

Product Code - 8146543
Price £1.32
Back Order

QSM-M5-4 PUSH-IN FITTING

Product Code - 153304
Price £2.53
Back Order

QSML-M5-4 PUSH-IN L-FITTING

Product Code - 153333
Price £3.66
Back Order


Product

Manufacturer Material ID -
DGST-16-40-PA
Net Weight -
0.70kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
