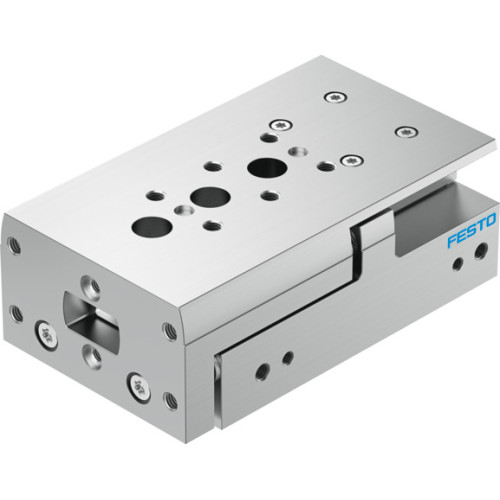

DGST-16-50-E1A Mini slide

Manufacturer's No: DGST-16-50-E1A     Manufacturer: Festo
DGST-16-50-E1A Mini slide

Availability On Request

£491.69
  • Mini slide with a stroke of 50 mm and a piston diameter of 16 mm
  • Operating mode: Yoke with elastomer cushioning (double-sided, stroke not adjustable)
  • Guide: Recirculating ball bearing guide for precise movement
  • Design: Twin piston with a yoke and piston rod
  • Position detection via proximity switch (Symbol: 991249)
  • Operating pressure range: 0.1 MPa to 14.5 PSI
  • Maximum speed: 0.5 m/s with a repetition accuracy of <= 0.3 mm
  • Double-acting operation suitable for compressed air (ISO 8573-1:2010 [7:4:4])
  • Corrosion resistance class CRC: 1 (Low corrosion stress)
  • Cleanroom class: Class 6 according to ISO 14644-1

Read more

  • Operating temperature range: -10°C to 60°C
  • Impact energy in end positions: 0.15 J with a cushioning length of 0.8 mm
  • Max. forces: Fy and Fz at 900 N, Mx, My, and Mz at 11.3 NM and 8 NM respectively
  • Theoretical forces at 0.6 MPa: 207 N (return stroke) and 241 N (advance stroke)
  • Moving mass: 342 g with a total product weight of 690 g
  • Type of mounting: With through-hole and pneumatic connection: M5
  • Materials: RoHS-compliant with cover and housing made of wrought aluminium alloy
  • Seals: HNBR, guides: POM, TPE-E, and high-alloy steel, piston rod: high-alloy stainless steel


Product

Manufacturer Material ID -
DGST-16-50-E1A
Net Weight -
0.74kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
