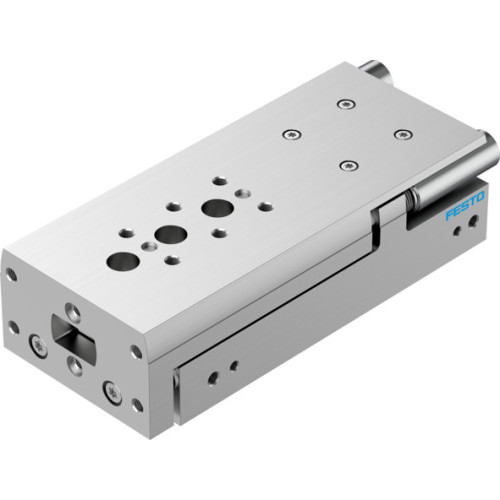

DGST-16-80-Y12A Mini slide

Manufacturer's No: DGST-16-80-Y12A     Manufacturer: Festo
DGST-16-80-Y12A Mini slide

Availability On Request

£701.51
  • Mini slide with a stroke of 80mm
  • Adjustable end position range: 16.9mm (front) and 15.5mm (rear)
  • Piston diameter: 16mm
  • Drive unit: Yoke
  • External hydraulic cushioning for cushioning
  • Mounting position: optional
  • Twin piston design with a yoke and piston rod
  • Recirculating ball bearing guide for smooth operation
  • Position detection via proximity switch
  • Operating pressure ranges from 0.1MPa to 8BAR

Read more

  • Maximum speed of 0.8m/s
  • Repetition accuracy of <= 0.02mm
  • Double-acting mode of operation
  • Suitable for compressed air per ISO 8573-1:2010 [7:4:4]
  • Low corrosion stress resistance (CRC: 1)
  • VDMA24364-B1/B2-L conformity for LABS (PWIS)
  • Cleanroom class 6 according to ISO 14644-1
  • Operating temperature range from -10°C to 60°C
  • Impact energy in end positions: 2J
  • Cushioning length: 5mm
  • Maximum forces: Fy and Fz at 920N, Mx, My, and Mz at 10-12NM
  • Theoretical forces at 0.6MPa: 207N (return stroke) and 241N (advance stroke)
  • Moving mass: 495g, product weight: 996g
  • Mounting with through-hole and M5 pneumatic connection
  • RoHS-compliant materials including wrought aluminium alloy, HNBR seals, POM and TPE-E guides, high-alloy steel components


Product

Manufacturer Material ID -
DGST-16-80-Y12A
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£701.51
