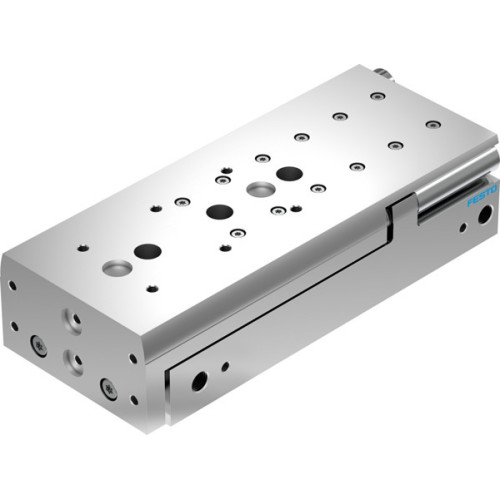

DGST-20-100-PA Mini slide

Manufacturer's No: DGST-20-100-PA     Manufacturer: Festo
DGST-20-100-PA Mini slide

Availability On Request

£708.63
  • Model: DGST-20-100-PA Mini slide
  • Stroke: 100 mm
  • Adjustable end position range/length front: 32.9 mm
  • Adjustable end position range/length rear: 31.1 mm
  • Piston diameter: 20 mm
  • Operating mode: Yoke drive unit
  • Cushioning: Elastic cushioning rings/plates at both ends
  • Guide: Ball bearing cage guide
  • Design: Twin piston, Yoke, Piston rod, Slide
  • Position detection: Via proximity switch

Read more

  • Operating pressure: 0.1 MPa, 0.8 MPa, 1 bar, 8 bar, 14.5 psi, 116 psi
  • Max. speed: 0.8 m/s
  • Repetition accuracy: ? 0.3 mm
  • Mode of operation: Double-acting
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible
  • Corrosion resistance class CRC: 1 - Low corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Cleanroom class: Class 6 according to ISO 14644-1
  • Ambient temperature: -10°C to 60°C
  • Impact energy in end positions: 0.35 J
  • Cushioning length: 1.2 mm
  • Max. force: Fy 1160 N, Fz 1160 N
  • Max. moment: Mx 18 Nm, My 11 Nm, Mz 11 Nm
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke: 317 N, advance stroke: 377 N
  • Moving mass: 962.5 g
  • Product weight: 2107 g
  • Type of mounting: With through-hole
  • Pneumatic connection: G1/8
  • Material: RoHS-compliant, cover - Wrought aluminium alloy, seals - HNBR, guide - POM, TPE-E, high-alloy steel, housing - Wrought aluminium alloy, piston rod - High-alloy stainless steel


Product

Manufacturer Material ID -
DGST-20-100-PA
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
