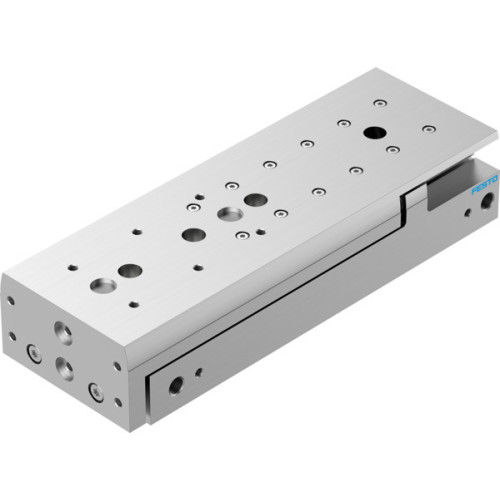

DGST-20-125-E1A Mini slide

Manufacturer's No: DGST-20-125-E1A     Manufacturer: Festo
DGST-20-125-E1A Mini slide

Availability On Request

£774.14
  • Mini slide with a stroke of 125 mm and a piston diameter of 20 mm
  • Operating mode: Yoke with elastomer cushioning (double-sided, non-adjustable)
  • Mounting position: Optional
  • Guide: Ball bearing cage guide for smooth operation
  • Design: Twin piston with a yoke and piston rod
  • Position detection via proximity switch with symbol 991249
  • Operating pressure ranges from 0.1 MPa to 8 BAR (1 BAR to 116 PSI)
  • Maximum speed of 0.5 m/s with a repetition accuracy of <= 0.3 mm
  • Double-acting mode suitable for various applications
  • Operating medium: Compressed air meeting ISO 8573-1:2010 [7:4:4] standards

Read more

  • Lubricated operation possible for enhanced performance
  • Low corrosion stress with CRC class 1 and VDMA24364-B1/B2-L conformity
  • Cleanroom class 6 according to ISO 14644-1 standards
  • Ambient temperature range from -10°C to 60°C
  • Impact energy in end positions: 0.2 J with a cushioning length of 1 mm
  • Maximum forces: Fy and Fz at 1380 N, Mx, My, and Mz at 20 NM and 17 NM respectively
  • Theoretical forces at 0.6 MPa (6 bar, 87 psi): 317 N (return stroke) and 377 N (advance stroke)
  • Moving mass of 1068 g and product weight of 2346 g
  • Type of mounting: With through-hole for easy installation
  • Pneumatic connection: G1/8 for efficient air supply
  • RoHS-compliant materials including wrought aluminium alloy, HNBR seals, POM and TPE-E guides, high-alloy steel components, and high-alloy stainless steel piston rod


Product

Manufacturer Material ID -
DGST-20-125-E1A
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£774.14
