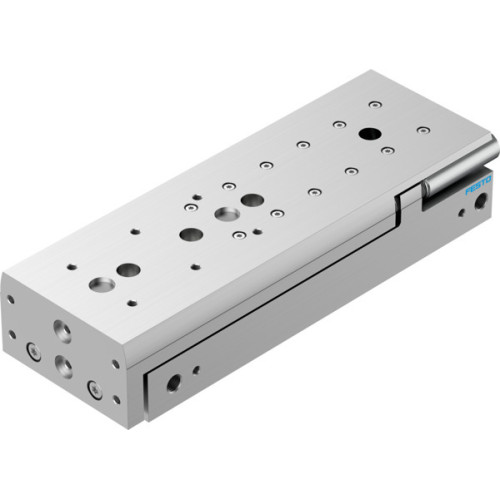

DGST-20-125-PA Mini slide

Manufacturer's No: DGST-20-125-PA     Manufacturer: Festo
DGST-20-125-PA Mini slide

Availability On Request

£837.27
  • Model: DGST-20-125-PA Mini slide
  • Stroke: 125 mm
  • Piston Diameter: 20 mm
  • Operating Mode: Yoke
  • Cushioning: Elastic cushioning rings/plates at both ends
  • Guide: Ball bearing cage guide
  • Design: Twin piston, Yoke, Piston rod, Slide
  • Position Detection: Via proximity switch
  • Operating Pressure: 0.1 MPa, 0.8 MPa, 1 bar, 8 bar, 14.5 psi, 116 psi
  • Max. Speed: 0.8 m/s

Read more

  • Repetition Accuracy: <= 0.3 mm
  • Mode of Operation: Double-acting
  • Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4], Lubricated operation possible
  • Corrosion Resistance Class CRC: 1 - Low corrosion stress
  • LABS (PWIS) Conformity: VDMA24364-B1/B2-L
  • Cleanroom Class: Class 6 according to ISO 14644-1
  • Ambient Temperature: -10°C to 60°C
  • Impact Energy in End Positions: 0.35 J
  • Cushioning Length: 1.2 mm
  • Max. Force: Fy 1380 N, Fz 1380 N
  • Max. Moment: Mx 20 Nm, My 17 Nm, Mz 17 Nm
  • Theoretical Force at 0.6 MPa (6 bar, 87 psi): Return stroke 317 N, Advance stroke 377 N
  • Moving Mass: 1140.5 g
  • Product Weight: 2491 g
  • Type of Mounting: With through-hole
  • Pneumatic Connection: G1/8
  • Material: RoHS-compliant, Cover - Wrought aluminium alloy, Seals - HNBR, Guide - POM, TPE-E, High-alloy steel, Housing - Wrought aluminium alloy, Piston Rod - High-alloy stainless steel


Product

Manufacturer Material ID -
DGST-20-125-PA
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£837.27
