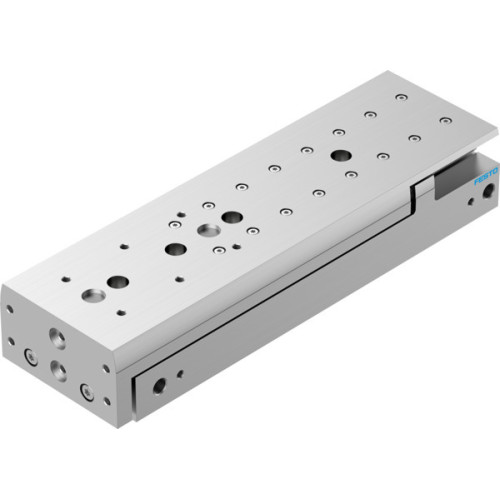

DGST-20-150-E1A Mini slide

Manufacturer's No: DGST-20-150-E1A     Manufacturer: Festo
DGST-20-150-E1A Mini slide

Availability On Request

£905.67
  • Mini slide with a stroke of 150 mm and a piston diameter of 20 mm
  • Operating mode: Yoke with elastomer cushioning (double-sided, stroke not adjustable)
  • Guide: Ball bearing cage guide for smooth operation
  • Design features: Twin piston, yoke, piston rod, and slide
  • Position detection via proximity switch for accurate control
  • Operating pressure range: 0.1 MPa to 14.5 PSI
  • Maximum speed: 0.5 m/s with high repetition accuracy of <= 0.3 mm
  • Double-acting mode for versatile functionality
  • Suitable for use with compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible
  • Low corrosion stress resistance (CRC: 1) for durability

Read more

  • Conforms to LABS (PWIS) standards and cleanroom class 6 according to ISO 14644-1
  • Wide ambient temperature range from -10°C to 60°C
  • Impact energy in end positions: 0.2 J with 1 mm cushioning length
  • Max. forces: Fy and Fz at 1300 N, Mx, My, and Mz at 20 NM and 17 NM respectively
  • Theoretical forces at 0.6 MPa: 317 N (return stroke) and 377 N (advance stroke)
  • Moving mass: 1221 g, product weight: 2686 g for stability
  • Features a through-hole mounting type and G1/8 pneumatic connection
  • RoHS-compliant materials including wrought aluminium alloy, HNBR seals, POM and TPE-E guides, and high-alloy steel components


Product

Manufacturer Material ID -
DGST-20-150-E1A
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£905.67
