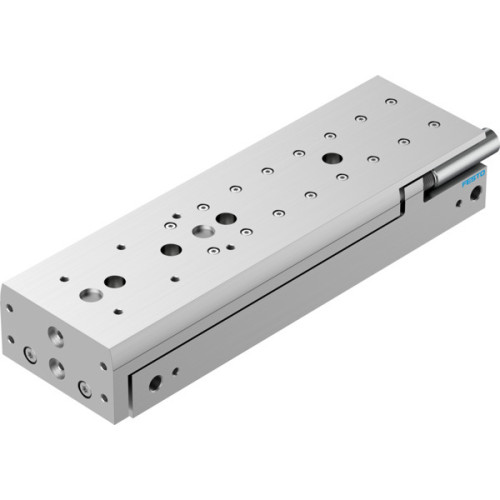

DGST-20-150-Y12A Mini slide

Manufacturer's No: DGST-20-150-Y12A     Manufacturer: Festo
DGST-20-150-Y12A Mini slide

Availability On Request

£1,012.48
  • Mini slide with a stroke of 150mm
  • Adjustable end position range: front 27.7mm, rear 25.9mm
  • Piston diameter: 20mm
  • Operating mode: Yoke drive unit
  • External hydraulic cushioning for cushioning
  • Mounting position: optional
  • Twin piston design with a yoke, piston rod, and slide
  • Position detection via proximity switch
  • Operating pressure: 0.1MPa, 0.8MPa, 1 bar, 8 bar, 14.5 psi, 116 psi
  • Max. speed: 0.8m/s

Read more

  • Repetition accuracy: <= 0.02mm
  • Double-acting mode of operation
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Lubricated operation possible for operating and pilot medium
  • Corrosion resistance class CRC: 1 - Low corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Cleanroom class: Class 6 according to ISO 14644-1
  • Ambient temperature: -10°C to 60°C
  • Impact energy in end positions: 3J
  • Cushioning length: 8mm
  • Max. forces: Fy 1300N, Fz 1300N, Mx 20Nm, My 17Nm, Mz 17Nm
  • Theoretical force at 0.6MPa (6 bar, 87 psi): return stroke 317N, advance stroke 377N
  • Moving mass: 1278g, Product weight: 2800g
  • Type of mounting: With through-hole
  • Pneumatic connection: G1/8
  • RoHS-compliant materials
  • Materials: Wrought aluminium alloy cover and housing, HNBR seals, POM and TPE-E guides, High-alloy steel guide, High-alloy stainless steel piston rod


Product

Manufacturer Material ID -
DGST-20-150-Y12A
Net Weight -
3.06kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
27131700
