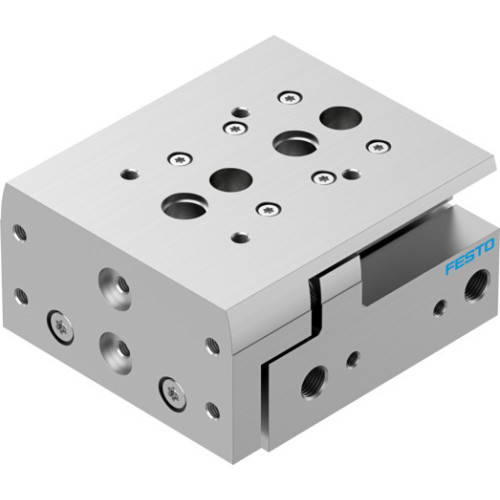

DGST-20-20-E1A Mini slide

Manufacturer's No: DGST-20-20-E1A     Manufacturer: Festo
DGST-20-20-E1A Mini slide

Availability On Request

£465.84
  • Mini slide with a stroke of 20mm and a piston diameter of 20mm
  • Operating mode: Yoke drive unit with elastomer cushioning (double-sided, non-adjustable)
  • Mounting position: Optional
  • Guide: Ball bearing cage guide
  • Design: Twin piston, Yoke, Piston rod, Slide
  • Position detection via proximity switch
  • Operating pressure range: 0.1 MPa to 8 bar (1 bar to 116 psi)
  • Maximum speed: 0.5 m/s
  • Repetition accuracy: <= 0.3mm
  • Double-acting operation with compressed air (ISO 8573-1:2010 [7:4:4])

Read more

  • Lubricated operation possible, lubrication always required
  • Corrosion resistance class CRC: 1 (Low corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Cleanroom class: Class 6 according to ISO 14644-1
  • Ambient temperature range: -10°C to 60°C
  • Impact energy in end positions: 0.2 J
  • Cushioning length: 1mm
  • Max. forces: Fy and Fz - 1270N, Mx, My, and Mz - 13Nm and 14Nm
  • Theoretical forces at 0.6 MPa (6 bar, 87 psi): Return stroke - 317N, Advance stroke - 377N
  • Moving mass: 448g, Product weight: 986g
  • Type of mounting: With through-hole
  • Pneumatic connection: G1/8
  • RoHS-compliant materials: Wrought aluminium alloy, HNBR seals, POM and TPE-E guides, High-alloy steel guide, Wrought aluminium alloy housing, High-alloy stainless steel piston rod


Product

Manufacturer Material ID -
DGST-20-20-E1A
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£465.84
