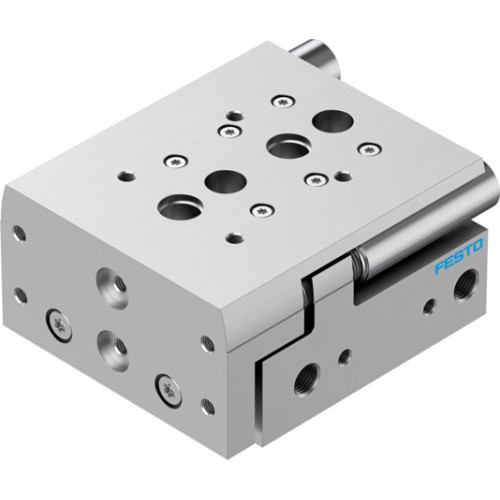

DGST-20-20-PA Mini slide

Manufacturer's No: DGST-20-20-PA     Manufacturer: Festo
DGST-20-20-PA Mini slide

Availability On Request

£506.68
  • Mini slide with a stroke of 20mm
  • Adjustable end position range of 20.1mm at both front and rear
  • Piston diameter: 20mm
  • Operating mode: Yoke drive unit
  • Cushioning with elastic rings/plates at both ends
  • Guide: Ball bearing cage guide
  • Twin piston design with yoke and piston rod
  • Position detection via proximity switch
  • Operating pressure range: 0.1 MPa to 14.5 PSI
  • Maximum speed: 0.8 m/s

Read more

  • Repetition accuracy: <= 0.3mm
  • Double-acting operation
  • Suitable for compressed air per ISO 8573-1:2010 [7:4:4]
  • Low corrosion stress resistance (CRC: 1)
  • Conforms to VDMA24364-B1/B2-L and ISO 14644-1 Class 6 cleanroom standards
  • Ambient temperature range: -10°C to 60°C
  • Impact energy in end positions: 0.35 J
  • Cushioning length: 1.2mm
  • Maximum forces: Fy and Fz 1270N, Mx, My, and Mz 13-14Nm
  • Theoretical forces at 0.6 MPa: 317N (return stroke) and 377N (advance stroke)
  • Moving mass: 520.5g, Product weight: 1131g
  • Mounting with through-hole, pneumatic connection: G1/8
  • RoHS-compliant materials: Wrought aluminium alloy, HNBR seals, POM and TPE-E guides, high-alloy steel components


Product

Manufacturer Material ID -
DGST-20-20-PA
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£506.68
