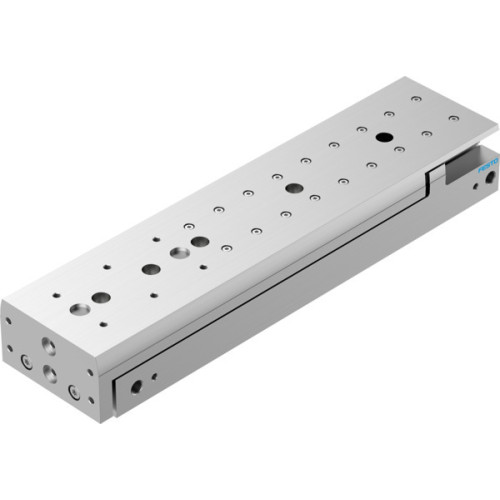

DGST-20-200-E1A Mini slide

Manufacturer's No: DGST-20-200-E1A     Manufacturer: Festo
DGST-20-200-E1A Mini slide

Availability On Request

£1,034.15
  • Mini slide DGST-20-200-E1A
  • Stroke: 200 mm
  • Piston diameter: 20 mm
  • Operating mode: Yoke
  • Cushioning: Elastomer cushioning, double-sided (non-adjustable)
  • Guide: Ball bearing cage guide
  • Design: Twin piston, Yoke, Piston rod, Slide
  • Position detection: Via proximity switch
  • Operating pressure: 0.1 MPa, 0.8 MPa, 1 bar, 8 bar, 14.5 psi, 116 psi
  • Max. speed: 0.5 m/s

Read more

  • Repetition accuracy: ? 0.3 mm
  • Mode of operation: Double-acting
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible
  • Corrosion resistance class CRC: 1 (Low corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Cleanroom class: Class 6 according to ISO 14644-1
  • Ambient temperature: -10°C to 60°C
  • Impact energy in end positions: 0.2 J
  • Cushioning length: 1 mm
  • Max. force: Fy 1170 N, Fz 1170 N
  • Max. moment: Mx 20 Nm, My 17 Nm, Mz 17 Nm
  • Theoretical force at 0.6 MPa (6 bar, 87 psi): Return stroke 317 N, Advance stroke 377 N
  • Moving mass: 1460 g
  • Product weight: 3275 g
  • Type of mounting: With through-hole
  • Pneumatic connection: G1/8
  • Material cover: Wrought aluminium alloy
  • Material seals: HNBR
  • Material guide: POM, TPE-E, High-alloy steel
  • Material housing: Wrought aluminium alloy
  • Material piston rod: High-alloy stainless steel


Product

Manufacturer Material ID -
DGST-20-200-E1A
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
