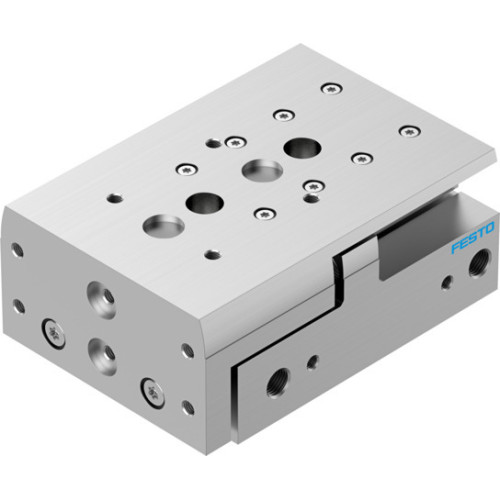

DGST-20-50-E1A Mini slide

Manufacturer's No: DGST-20-50-E1A     Manufacturer: Festo
DGST-20-50-E1A Mini slide

Availability On Request

£543.61
  • Mini slide with a stroke of 50 mm and a piston diameter of 20 mm
  • Operating mode: Yoke with elastomer cushioning (double-sided, stroke not adjustable)
  • Guide: Ball bearing cage guide for smooth operation
  • Design: Twin piston with yoke and piston rod
  • Position detection via proximity switch for accurate positioning
  • Operating pressure range: 0.1 MPa to 8 bar (1 to 116 psi)
  • Maximum speed: 0.5 m/s with a repetition accuracy of <= 0.3 mm
  • Double-acting operation suitable for various applications
  • Operating medium: Compressed air (ISO 8573-1:2010 [7:4:4]) with lubricated operation possible
  • Corrosion resistance class CRC: 1 (Low corrosion stress)

Read more

  • Cleanroom class: Class 6 according to ISO 14644-1
  • Temperature range: -10°C to 60°C for versatile use
  • Impact energy in end positions: 0.2 J with a cushioning length of 1 mm
  • Maximum forces: Fy and Fz at 1080 N, Mx, My, and Mz at 9-10 Nm
  • Theoretical forces at 0.6 MPa (6 bar, 87 psi): 317 N (return stroke) and 377 N (advance stroke)
  • Moving mass: 549 g with a product weight of 1196 g
  • Type of mounting: With through-hole for easy installation
  • Pneumatic connection: G1/8 for convenient air supply
  • Materials: RoHS-compliant with cover and housing made of wrought aluminum alloy, seals of HNBR, guides of POM and TPE-E, and piston rod of high-alloy stainless steel


Product

Manufacturer Material ID -
DGST-20-50-E1A
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
