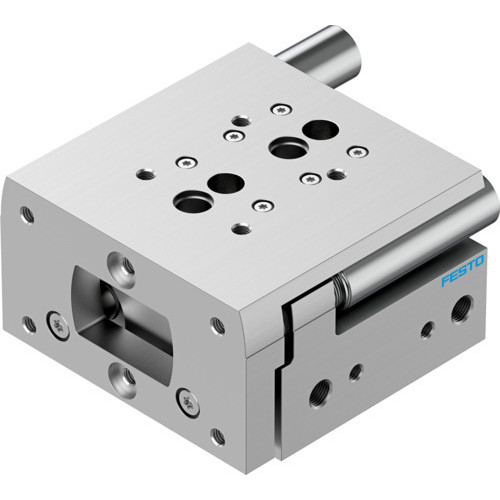

DGST-25-10-PA Mini slide

Manufacturer's No: DGST-25-10-PA     Manufacturer: Festo
DGST-25-10-PA Mini slide

Availability On Request

£524.67
  • Mini slide with a stroke of 10mm
  • Piston diameter: 25mm
  • Twin piston design with yoke and piston rod
  • Ball bearing cage guide for smooth operation
  • Elastic cushioning rings/plates at both ends for cushioning
  • Operating pressure range: 0.1 MPa to 8 bar (1 to 116 PSI)
  • Max. speed: 0.8 m/s
  • Repetition accuracy: <= 0.3mm
  • Double-acting mode of operation
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]

Read more

  • Corrosion resistance class CRC: 1 - Low corrosion stress
  • Cleanroom class: Class 6 according to ISO 14644-1
  • Ambient temperature range: -10°C to 60°C
  • Impact energy in end positions: 0.45 J
  • Max. force: Fy and Fz - 1840N; Max. moments: Mx, My, and Mz - 19 to 21 Nm
  • Theoretical force at 0.6 MPa (6 bar, 87 psi): Return stroke - 495N, Advance stroke - 589N
  • Moving mass: 850.5g; Product weight: 1736g
  • Type of mounting: With through-hole
  • Pneumatic connection: G1/8
  • RoHS-compliant materials: Wrought aluminium alloy, HNBR seals, POM and TPE-E guides, High-alloy steel piston rod


Product

Manufacturer Material ID -
DGST-25-10-PA
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
