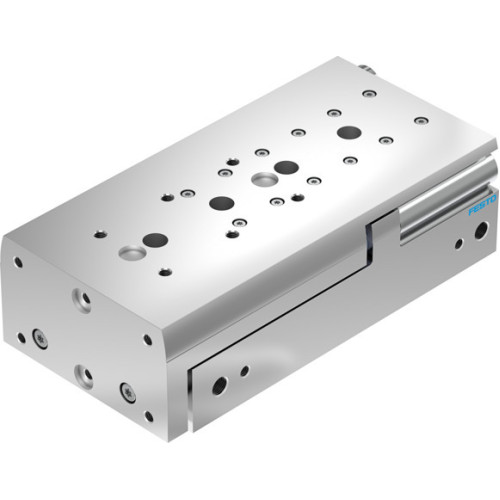

DGST-25-100-Y12A Mini slide

Manufacturer's No: DGST-25-100-Y12A     Manufacturer: Festo
DGST-25-100-Y12A Mini slide

Availability On Request

£881.41
  • Mini slide with a stroke of 100mm
  • Adjustable end position range: Front 32mm, Rear 30.4mm
  • Piston diameter: 25mm
  • Operating mode: Yoke drive unit
  • External hydraulic cushioning for cushioning
  • Mounting position: Optional
  • Ball bearing cage guide for guidance
  • Twin piston design with yoke and piston rod
  • Position detection via proximity switch
  • Operating pressure: 0.1MPa, 0.8MPa, 1bar, 8bar, 14.5psi, 116psi

Read more

  • Max. speed: 0.8m/s
  • Repetition accuracy: <= 0.02mm
  • Double-acting operation
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Lubricated operation possible
  • Low corrosion stress resistance (CRC: 1)
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Cleanroom class: Class 6 according to ISO 14644-1
  • Ambient temperature range: -10°C to 60°C
  • Impact energy in end positions: 6J
  • Cushioning length: 10mm
  • Max. forces: Fy 1160N, Fz 1160N
  • Max. moments: Mx 18Nm, My 11Nm, Mz 11Nm
  • Theoretical force at 0.6MPa (6bar, 87psi): Return stroke 495N, Advance stroke 589N
  • Moving mass: 1493g
  • Product weight: 3078g
  • Type of mounting: With through-hole
  • Pneumatic connection: G1/8
  • RoHS-compliant materials
  • Materials: Wrought aluminium alloy cover and housing, HNBR seals, POM and TPE-E guides, High-alloy steel guide, High-alloy stainless steel piston rod


Product

Manufacturer Material ID -
DGST-25-100-Y12A
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£881.41
