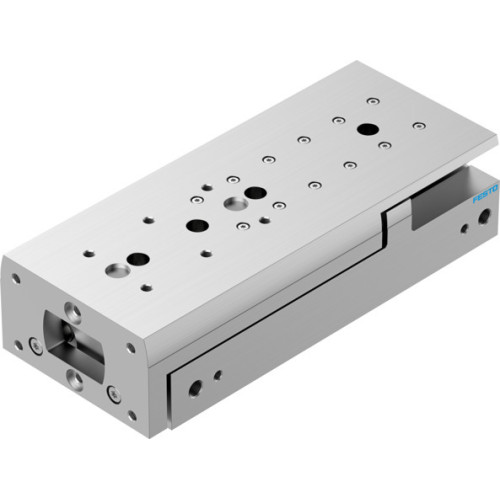

DGST-25-125-E1A Mini slide

Manufacturer's No: DGST-25-125-E1A     Manufacturer: Festo
DGST-25-125-E1A Mini slide

Availability On Request

£812.78
  • Mini slide with a stroke of 125mm and a piston diameter of 25mm
  • Operating mode: Yoke drive unit with elastomer cushioning (double-sided, stroke not adjustable)
  • Guide: Ball bearing cage guide for smooth operation
  • Design: Twin piston, Yoke, Piston rod, Slide
  • Position detection via proximity switch for precise control
  • Operating pressure range: 0.1 MPa to 8 Bar (1 to 116 PSI)
  • Max. speed of 0.5 m/s with a repetition accuracy of <= 0.3mm
  • Double-acting operation suitable for various applications
  • Operating medium: Compressed air meeting ISO 8573-1:2010 [7:4:4] standards
  • Corrosion resistance class CRC: 1 (Low corrosion stress)

Read more

  • Cleanroom class: Class 6 as per ISO 14644-1 standards
  • Wide ambient temperature range from -10°C to 60°C
  • Impact energy in end positions: 0.3 J with a cushioning length of 1.2mm
  • Max. forces: Fy and Fz at 1380N, Mx, My, and Mz at 20Nm and 17Nm respectively
  • Theoretical forces at 0.6 MPa: 495N (return stroke) and 589N (advance stroke)
  • Moving mass of 1703g with a product weight of 3507g
  • Type of mounting: With through-hole for easy installation
  • Pneumatic connection: G1/8 for efficient air supply
  • RoHS-compliant materials used: Wrought aluminium alloy, HNBR seals, POM and TPE-E guides, High-alloy steel components


Product

Manufacturer Material ID -
DGST-25-125-E1A
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
