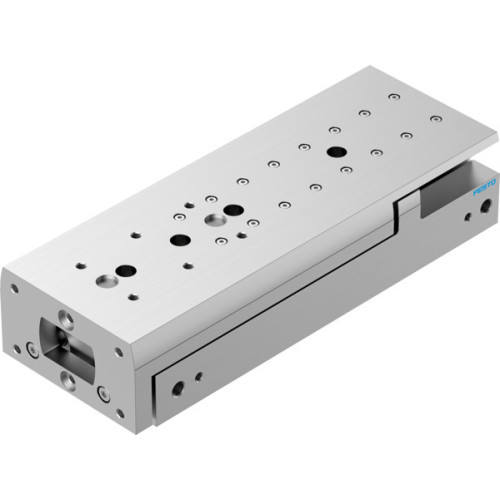

DGST-25-150-E1A Mini slide

Manufacturer's No: DGST-25-150-E1A     Manufacturer: Festo
DGST-25-150-E1A Mini slide

Availability On Request

£912.92
  • Mini slide with a stroke of 150 mm and a piston diameter of 25 mm
  • Operating mode: Yoke; Cushioning: Elastomer cushioning, double-sided (non-adjustable stroke)
  • Guide: Ball bearing cage guide; Design: Twin piston, Yoke, Piston rod, Slide
  • Position detection via proximity switch; Symbol: 991249
  • Operating pressure: 0.1 MPa, 0.8 MPa, 1 bar, 8 bar, 14.5 psi, 116 psi
  • Max. speed: 0.5 m/s; Repetition accuracy: ? 0.3 mm; Mode of operation: Double-acting
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]; Lubricated operation possible
  • Corrosion resistance class CRC: 1 (Low corrosion stress); LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Cleanroom class: Class 6 according to ISO 14644-1
  • Ambient temperature: -10°C to 60°C; Impact energy in end positions: 0.3 J

Read more

  • Cushioning length: 1.2 mm; Max. force Fy: 1300 N; Max. force Fz: 1300 N
  • Max. moment Mx: 20 Nm; Max. moment My: 17 Nm; Max. moment Mz: 17 Nm
  • Theoretical force at 0.6 MPa (6 bar, 87 psi): Return stroke - 495 N, Advance stroke - 589 N
  • Moving mass: 1877 g; Product weight: 3927 g
  • Type of mounting: With through-hole; Pneumatic connection: G1/8
  • RoHS-compliant materials: Wrought aluminium alloy cover, HNBR seals, POM and TPE-E guides, High-alloy steel guide, Wrought aluminium alloy housing, High-alloy stainless steel piston rod


Product

Manufacturer Material ID -
DGST-25-150-E1A
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£912.92
