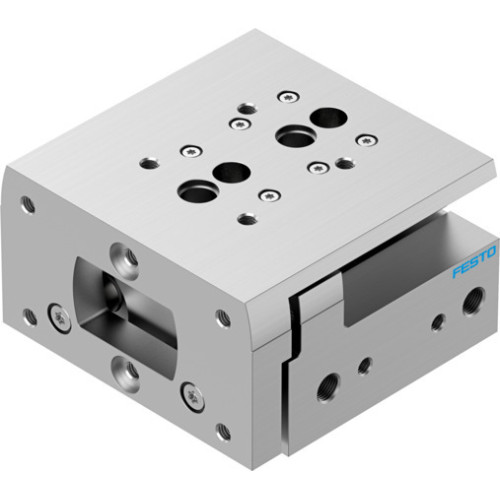

DGST-25-20-E1A Mini slide

Manufacturer's No: DGST-25-20-E1A     Manufacturer: Festo
DGST-25-20-E1A Mini slide

Availability On Request

£498.13
  • Mini slide with a stroke of 20 mm and a piston diameter of 25 mm
  • Operating mode: Yoke drive unit with elastomer cushioning (double-sided, stroke not adjustable)
  • Mounting position: Optional; Guide: Ball bearing cage guide
  • Design features: Twin piston, Yoke, Piston rod, Slide
  • Position detection via proximity switch; Symbol: 991249
  • Operating pressure range: 0.1 MPa to 8 bar (1 to 116 PSI)
  • Maximum speed: 0.5 m/s; Repetition accuracy: <= 0.3 mm
  • Double-acting operation with compressed air (ISO 8573-1:2010 [7:4:4])
  • Lubricated operation possible; Corrosion resistance class: 1 (Low corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L; Cleanroom class: Class 6 (ISO 14644-1)

Read more

  • Ambient temperature range: -10°C to 60°C
  • Impact energy in end positions: 0.3 J; Cushioning length: 1.2 mm
  • Maximum forces: Fy and Fz - 1460 N; Max. moments: Mx, My, and Mz - 16 Nm
  • Theoretical forces at 0.6 MPa (6 bar, 87 psi): Return stroke - 495 N; Advance stroke - 589 N
  • Moving mass: 738 g; Product weight: 1528 g
  • Type of mounting: With through-hole; Pneumatic connection: G1/8
  • RoHS-compliant materials: Wrought aluminium alloy (cover and housing), HNBR (seals), POM and TPE-E (guides), High-alloy stainless steel (piston rod)


Product

Manufacturer Material ID -
DGST-25-20-E1A
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
