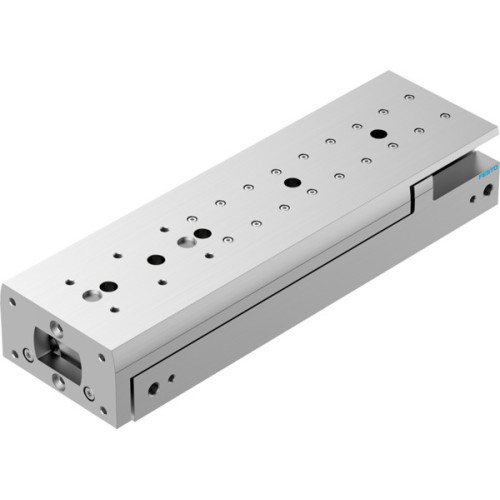

DGST-25-200-E1A Mini slide

Manufacturer's No: DGST-25-200-E1A     Manufacturer: Festo
DGST-25-200-E1A Mini slide

Availability On Request

£1,038.53
  • Mini slide with a stroke of 200 mm and a piston diameter of 25 mm
  • Operating mode: Yoke with elastomer cushioning (double-sided, stroke not adjustable)
  • Guide: Ball bearing cage guide for smooth operation
  • Design: Twin piston with yoke and piston rod
  • Position detection via proximity switch for accurate feedback
  • Operating pressure ranges from 0.1 MPa to 14.5 PSI
  • Max. speed of 0.5 m/s with a repetition accuracy of <= 0.3 mm
  • Double-acting operation suitable for various applications
  • Operating medium: Compressed air meeting ISO 8573-1:2010 [7:4:4] standards
  • Corrosion resistance class CRC: 1 for low corrosion stress environments

Read more

  • Cleanroom class: Class 6 according to ISO 14644-1 for controlled environments
  • Wide ambient temperature range from -10°C to 60°C
  • Impact energy in end positions: 0.3 J with a cushioning length of 1.2 mm
  • Max. forces: Fy and Fz at 1170 N, Mx, My, and Mz at 20 NM and 17 NM respectively
  • Theoretical forces at 0.6 MPa: 495 N (return stroke) and 589 N (advance stroke)
  • Moving mass of 2282 g and product weight of 4803 g
  • Type of mounting: With through-hole for easy installation
  • Pneumatic connection: G1/8 for convenient air supply
  • RoHS-compliant materials including wrought aluminium alloy, HNBR seals, POM and TPE-E guides, and high-alloy steel components


Product

Manufacturer Material ID -
DGST-25-200-E1A
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£1,038.53
