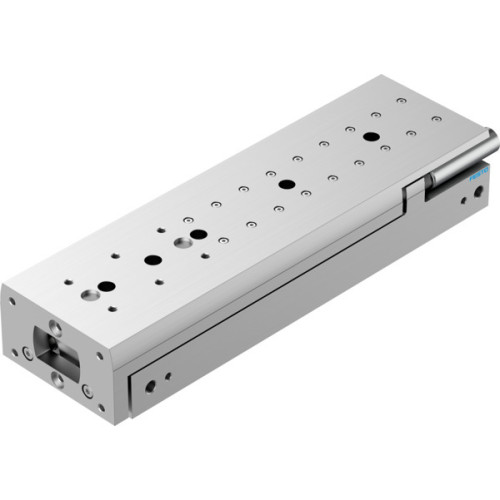

DGST-25-200-Y12A Mini slide

Manufacturer's No: DGST-25-200-Y12A     Manufacturer: Festo
DGST-25-200-Y12A Mini slide

Availability On Request

£1,175.27
  • Mini slide with a stroke of 200mm
  • Adjustable end position range: Front 32mm, Rear 30.4mm
  • Piston diameter: 25mm
  • Operating mode: Yoke drive unit
  • Cushioning: External hydraulic cushioning
  • Guide: Ball bearing cage guide
  • Design: Twin piston, Yoke, Piston rod, Slide
  • Position detection: Via proximity switch
  • Operating pressure: 0.1MPa, 0.8MPa, 1bar, 8bar, 14.5psi, 116psi
  • Max. speed: 0.8m/s

Read more

  • Repetition accuracy: <= 0.02mm
  • Mode of operation: Double-acting
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 1 - Low corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Cleanroom class: Class 6 according to ISO 14644-1
  • Ambient temperature: -10°C to 60°C
  • Impact energy in end positions: 6J
  • Cushioning length: 10mm
  • Max. force: Fy 1170N, Fz 1170N
  • Max. moment: Mx 20Nm, My 17Nm, Mz 17Nm
  • Theoretical force at 0.6MPa (6bar, 87psi): Return stroke 495N, Advance stroke 589N
  • Moving mass: 2387g, Product weight: 5013g
  • Type of mounting: With through-hole
  • Pneumatic connection: G1/8
  • Material cover: Wrought aluminium alloy
  • Material seals: HNBR
  • Material guide: POM, TPE-E, High-alloy steel
  • Material housing: Wrought aluminium alloy
  • Material piston rod: High-alloy stainless steel
  • Note: Lubricated operation possible, RoHS-compliant materials


Product

Manufacturer Material ID -
DGST-25-200-Y12A
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£1,175.27
