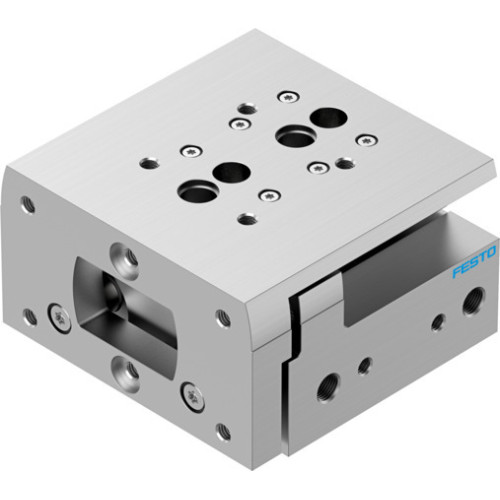

DGST-25-30-E1A Mini slide

Manufacturer's No: DGST-25-30-E1A     Manufacturer: Festo
DGST-25-30-E1A Mini slide

Availability On Request

£524.05
  • Mini slide with a stroke of 30mm and a piston diameter of 25mm
  • Operating mode: Yoke with elastomer cushioning (double-sided, stroke not adjustable)
  • Mounting position: optional
  • Guide: Ball bearing cage guide for twin piston design with yoke and piston rod
  • Position detection via proximity switch with symbol 991249
  • Operating pressure range: 0.1 MPa to 8 bar (1 to 116 PSI)
  • Max. speed: 0.5 m/s with <= 0.3mm repetition accuracy
  • Double-acting mode with compressed air as the operating medium (ISO 8573-1:2010 [7:4:4])
  • Lubricated operation possible with low corrosion stress (CRC: 1)
  • Conforms to VDMA24364-B1/B2-L and cleanroom class 6 (ISO 14644-1)

Read more

  • Ambient temperature range: -10°C to 60°C
  • Impact energy in end positions: 0.3 J with a cushioning length of 1.2mm
  • Max. forces: Fy and Fz at 1280N, Mx, My, and Mz at 14Nm
  • Theoretical forces at 0.6 MPa: 495N (return stroke) and 589N (advance stroke)
  • Moving mass: 762g with a product weight of 1547g
  • Type of mounting: With through-hole and G1/8 pneumatic connection
  • RoHS-compliant materials: Wrought aluminium alloy cover and housing, HNBR seals, POM and TPE-E guides, high-alloy stainless steel piston rod


Product

Manufacturer Material ID -
DGST-25-30-E1A
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£524.05
