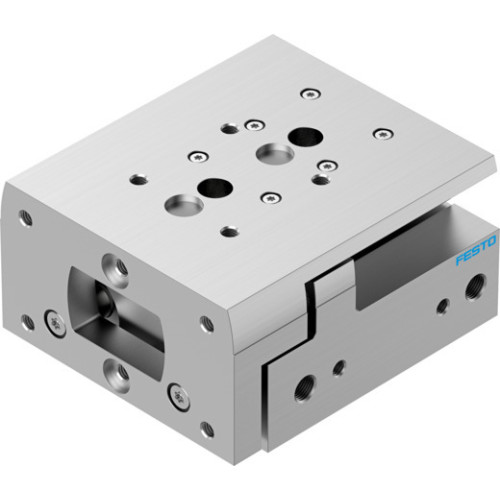

DGST-25-40-E1A Mini slide

Manufacturer's No: DGST-25-40-E1A     Manufacturer: Festo
DGST-25-40-E1A Mini slide

Availability On Request

£549.99
  • Mini slide with a stroke of 40mm and a piston diameter of 25mm
  • Operating mode with a yoke drive unit and elastomer cushioning (double-sided, stroke not adjustable)
  • Ball bearing cage guide for smooth operation
  • Twin piston design with position detection via proximity switch
  • Operating pressure ranging from 0.1 MPa to 8 BAR (1 BAR to 116 PSI)
  • Maximum speed of 0.5 m/s and repetition accuracy of <= 0.3mm
  • Double-acting mode with compressed air as the operating medium (lubricated operation possible)
  • Low corrosion stress resistance with LABS (PWIS) conformity
  • Cleanroom class 6 according to ISO 14644-1 standards
  • Ambient temperature range from -10°C to 60°C

Read more

  • Impact energy in end positions: 0.3 J and cushioning length of 1.2mm
  • Maximum forces: Fy and Fz at 1310N, Mx, My, and Mz at 13Nm and 12Nm respectively
  • Theoretical forces at 0.6 MPa: 495N (return stroke) and 589N (advance stroke)
  • Moving mass of 877g and product weight of 1743g
  • Mounting with a through-hole and pneumatic connection of G1/8
  • RoHS-compliant materials including wrought aluminium alloy, HNBR seals, POM and TPE-E guides, high-alloy steel, and high-alloy stainless steel piston rod.


Product

Manufacturer Material ID -
DGST-25-40-E1A
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
