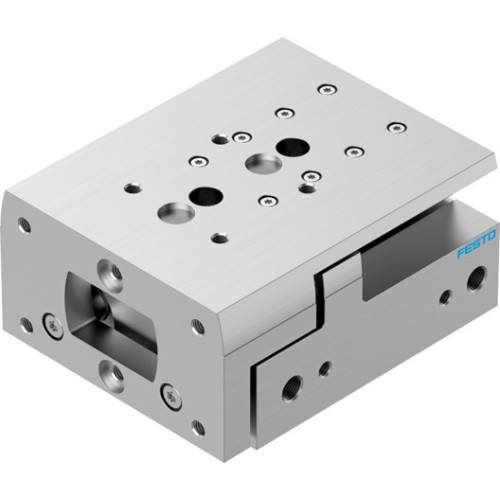

DGST-25-50-E1A Mini slide

Manufacturer's No: DGST-25-50-E1A     Manufacturer: Festo
DGST-25-50-E1A Mini slide

Availability On Request

£575.91
  • Mini slide with a stroke of 50 mm and a piston diameter of 25 mm
  • Operating mode: Yoke with elastomer cushioning (double-sided, stroke not adjustable)
  • Guide: Ball bearing cage guide for smooth operation
  • Design: Twin piston with a yoke and piston rod
  • Position detection via proximity switch for accurate feedback
  • Operating pressure ranges from 0.1 MPa to 14.5 PSI
  • Max. speed of 0.5 m/s with a repetition accuracy of <= 0.3 mm
  • Double-acting mode suitable for various applications
  • Operating medium: Compressed air meeting ISO 8573-1:2010 [7:4:4] standards
  • Corrosion resistance class CRC: 1 for low corrosion stress environments

Read more

  • Cleanroom class: Class 6 according to ISO 14644-1 standards
  • Wide ambient temperature range from -10°C to 60°C
  • Impact energy in end positions: 0.3 J with a cushioning length of 1.2 mm
  • Max. forces: Fy and Fz at 1080 N, moments Mx, My, and Mz at 12 NM, 11 NM, and 11 NM respectively
  • Theoretical forces at 0.6 MPa (6 bar, 87 psi): 495 N (return stroke) and 589 N (advance stroke)
  • Moving mass: 897 g with a product weight of 1816 g
  • Type of mounting: With through-hole for easy installation
  • Pneumatic connection: G1/8 for convenient setup
  • RoHS-compliant materials used throughout:
    • Cover: Wrought aluminium alloy
    • Seals: HNBR
    • Guides: POM, TPE-E, and high-alloy steel
    • Housing: Wrought aluminium alloy
    • Piston rod: High-alloy stainless steel


Product

Manufacturer Material ID -
DGST-25-50-E1A
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£575.91
