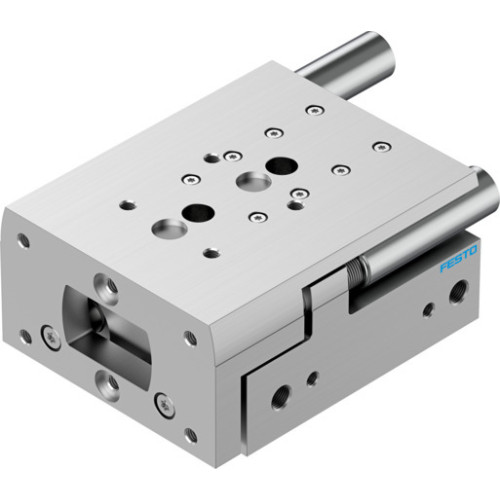

DGST-25-50-Y12A Mini slide

Manufacturer's No: DGST-25-50-Y12A     Manufacturer: Festo
DGST-25-50-Y12A Mini slide

Availability Back Order

£708.28
  • Mini slide with a stroke of 50mm
  • Adjustable end position range: 32mm front, 30.4mm rear
  • Piston diameter: 25mm
  • Operating mode: Yoke drive unit
  • External hydraulic cushioning for cushioning
  • Mounting position: optional
  • Twin piston design with yoke, piston rod, and slide
  • Position detection via proximity switch
  • Operating pressure: 0.1MPa, 0.8MPa, 1 bar, 8 bar, 14.5 psi, 116 psi
  • Max. speed: 0.8m/s

Read more

  • Repetition accuracy: <= 0.02mm
  • Double-acting mode of operation
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Lubricated operation possible
  • Corrosion resistance class CRC: 1 - Low corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Cleanroom class: Class 6 according to ISO 14644-1
  • Ambient temperature range: -10°C to 60°C
  • Impact energy in end positions: 6J
  • Cushioning length: 10mm
  • Max. forces: Fy 1080N, Fz 1080N
  • Max. moments: Mx 12Nm, My 11Nm, Mz 11Nm
  • Theoretical force at 0.6MPa (6 bar, 87 psi): Return stroke 495N, advance stroke 589N
  • Moving mass: 1002g, Product weight: 2026g
  • Type of mounting: With through-hole
  • Pneumatic connection: G1/8
  • RoHS-compliant materials
  • Materials: Wrought aluminium alloy cover and housing, HNBR seals, POM and TPE-E guides, High-alloy steel guide, High-alloy stainless steel piston rod

Accessories

PUSH IN FITTING (PK 10)

Product Code - 186096
Price £2.38
Back Order

PUN-H-6X1-BL 6MM PLASTIC TUBING

Product Code - 197384
Price £1.09
Back Order

QS-G1/8-6-I PUSH-IN FITTING

Product Code - 186107
Price £2.72
Back Order

QSL-G1/8-6 PUSH-IN L-FITTING

Product Code - 186117
Price £3.66
Back Order

PUN-H-6X1-NT 6MM PLASTIC TUBING

Product Code - 197377
Price £1.09
Back Order


Product

Manufacturer Material ID -
DGST-25-50-Y12A
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
