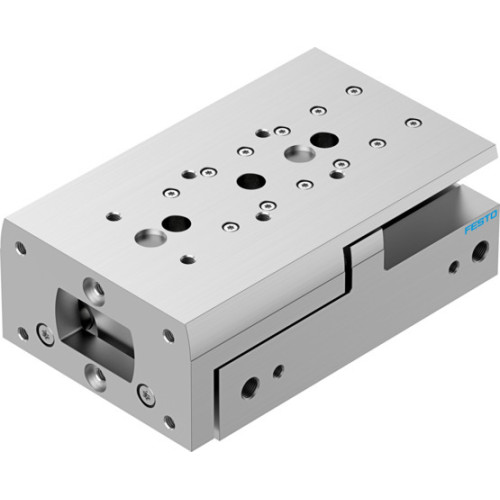

DGST-25-80-E1A Mini slide

Manufacturer's No: DGST-25-80-E1A     Manufacturer: Festo
DGST-25-80-E1A Mini slide

Availability On Request

£653.66
  • Mini slide with a stroke of 80mm and a piston diameter of 25mm
  • Operating mode: Yoke with elastomer cushioning (double-sided, stroke not adjustable)
  • Guide: Ball bearing cage guide for smooth operation
  • Design: Twin piston with yoke and piston rod
  • Position detection via proximity switch for accurate control
  • Operating pressure range: 0.1 MPa to 8 bar (1 to 116 PSI)
  • Max. speed: 0.5 m/s with a repetition accuracy of <= 0.3mm
  • Double-acting mode for versatile functionality
  • Suitable for use with compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible
  • Corrosion resistance class CRC: 1 for low corrosion stress

Read more

  • Cleanroom class: Class 6 according to ISO 14644-1
  • Wide ambient temperature range from -10°C to 60°C
  • Impact energy in end positions: 0.3 J with cushioning length of 1.2mm
  • Max. forces: Fy and Fz at 1030N, Mx, My, and Mz at 14Nm and 11Nm respectively
  • Theoretical forces at 0.6 MPa: 495N (return stroke) and 589N (advance stroke)
  • Moving mass of 1217g with a product weight of 2452g
  • Type of mounting: With through-hole for easy installation
  • Pneumatic connection: G1/8 for efficient air supply
  • RoHS-compliant materials including wrought aluminium alloy, HNBR seals, POM and TPE-E guides, high-alloy steel components


Product

Manufacturer Material ID -
DGST-25-80-E1A
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
30102206
