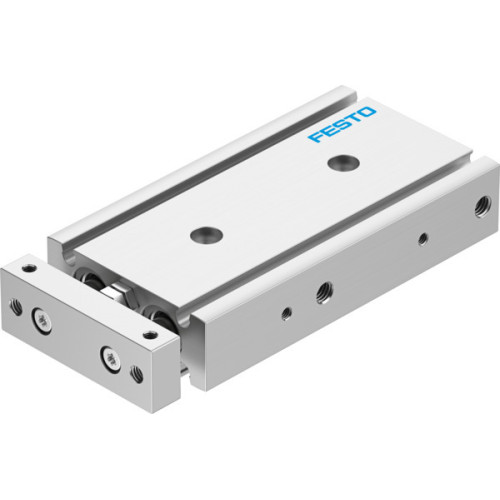

DGTZ-GF-10-40-P-A Twin cylinder

Manufacturer's No: DGTZ-GF-10-40-P-A     Manufacturer: Festo
DGTZ-GF-10-40-P-A Twin cylinder

Availability On Request

£228.16
  • Model: DGTZ-GF-10-40-P-A
  • Twin cylinder with adjustable end-position range of 10mm and stroke of 40mm
  • Piston diameter: 10mm
  • Operating mode: Yoke drive unit
  • Cushioning: Elastic cushioning rings/plates at both ends
  • Mounting position: Optional
  • Guide: Plain-bearing guide
  • Position detection: Via proximity switch
  • Operating pressure: 0.15 MPa, 0.8 MPa, 1.5 bar, 8 bar
  • Mode of operation: Double-acting

Read more

  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 1 (Low corrosion stress)
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Cleanroom class: Class 6 according to ISO 14644-1
  • Ambient temperature: -10°C to 80°C
  • Impact energy in end positions: 0.08 Nm
  • Max. effective load dependent upon stroke at defined distance xs: 3.6 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke: 60 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke: 94 N
  • Moving mass: 195 g
  • Product weight: 195 g
  • Pneumatic connection: M5
  • Material cover: Wrought aluminium alloy
  • Material seals: HNBR
  • Material housing: Anodised wrought aluminium alloy
  • Material piston rod: High-alloy stainless steel
  • Note on materials: RoHS-compliant


Product

Manufacturer Material ID -
DGTZ-GF-10-40-P-A
Net Weight -
0.20kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
CN
UNSPSC -
30102206
